TOPIC: Need wiring digram 1961 merc 500

Need wiring digram 1961 merc 500 15 years 10 months ago #8682

pathfinderz1 Topic Author Offline Gold Boarder Posts: 710 Karma: 16 Thank you received: 0	Need wiring digram 1961 merc 500 Thunderbolt 50hp Thanks Mike aka pathfinderz1 Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation.

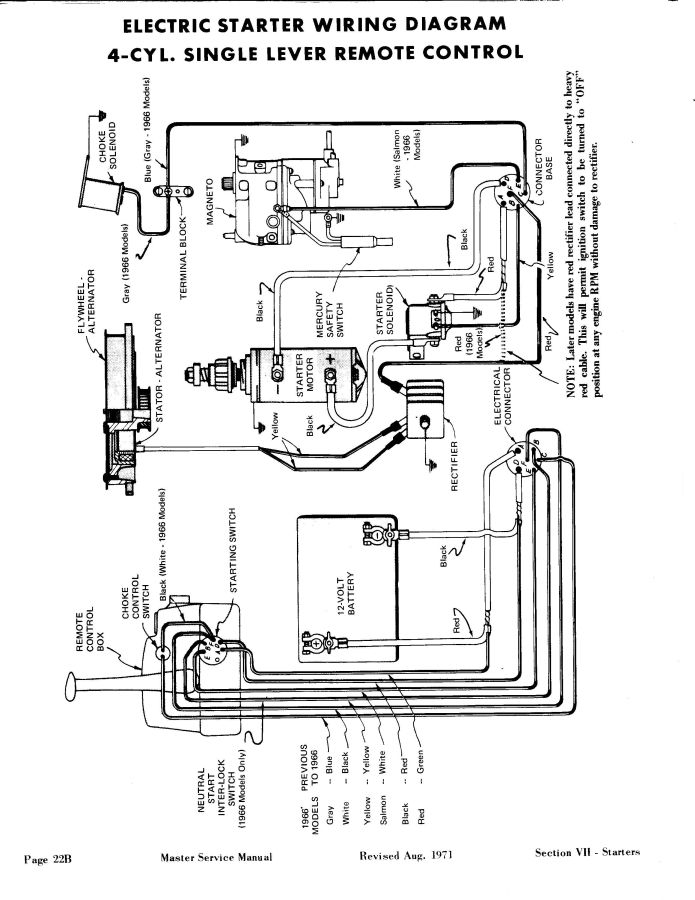

Dr_Frankenmerc Offline Contributing Member Posts: 1433 Karma: 185 Thank you received: 44	See the attached picture. Attachments: Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation.

pathfinderz1 Topic Author Offline Gold Boarder Posts: 710 Karma: 16 Thank you received: 0	Thanks I will see if this helps the guy Mike aka pathfinderz1 Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
