TOPIC: need part digram for a Merc 100

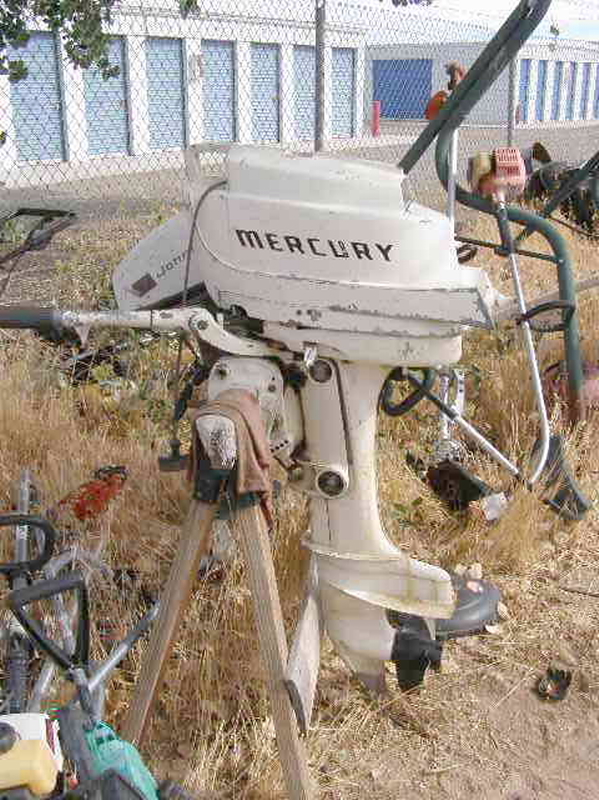

This is and older motor with a alumimum hood. What I realy need is the whole pull start digram. I got parts missing.
Mike aka the pirate

Hi, Mike, is this a 10hp model "100" Twin or a 100 hp Inline Six? The last Merc 1000-6 with a recoil starter would've been around '64 or so. A pic would help pin down the year.

www.boats.net has a nice interface for looking up parts, but they only go back to around '68 or so.

This side does post factory parts diagrams for older Mercs as well:

www.mercruiserparts.com/SelectModelType3.asp?class_id=2

Note there are 2 different selections for Mercury stuff, if you don't see your motor listed in one, try the other.

HTH..........ed

Ok, didn't see the pic the first time. This site has a parts listing for your motor but unfortunately no diagram. Mebbe one of the other Guru's has a link to a diagram.

www.dougrussell.com/partscatalog/components/index.cfm?fuseaction=viewparts&colid=01&coldesc=100%2C%20150%2C%20200%2C%20250&index=1108&block=2&BlockNumberList=12,4,5,13,10,9,14,6,16,3,1,11,8,7,2,15

Edit: Guess what I found!

www.ishopmarine.com/ishop/store/mercury/

Just drill thru to your model # and this one does have a picture, it's not very good but it's better than none!

Cheers..........ed

Thanks for trying to help but nothing there this old
Heres the seral number 1350499 Thats makes it a 1960 Mike aka the pirate

goto ishop marine site and click mercury then look under 100 150 200 250
it is there.part###'s and all.

Ok after looking at the parts it looks like need the whole pull start assmebley. So if anybody has one let me know.
Mike aka the pirate

Try this link . there is a complete manual here for your motor and the pullstart. It is repairable. There is lots of these on ebay also. www.agott.com/glassboat/manuals.html
