TOPIC: PTT wiring diagram - dual solenoids

PTT wiring diagram - dual solenoids 12 years 11 months ago #39657

peterstransky Offline Expert Boarder Posts: 353 Karma: 11 Thank you received: 0	I too am setting up a PTT Unit on my '63 1000. I swapped in what I think is a mid eighties unit. Single RAM, three wire, dual solenoids. This is how I was going to wire it..... Attachments: Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation.

MarkS Offline Moderator Posts: 5348 Karma: 118 Thank you received: 5	That looks good Peter, except I think you may have the blue and green wires swapped. According to Arco Marine, Blue is up and Green is down. Here's a link to their diagram, page two covers two wire trim pumps; www.arcomarine.com/xhtml/tech%20tilt%20trim%20motor%20tips.pdf Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation. Mark

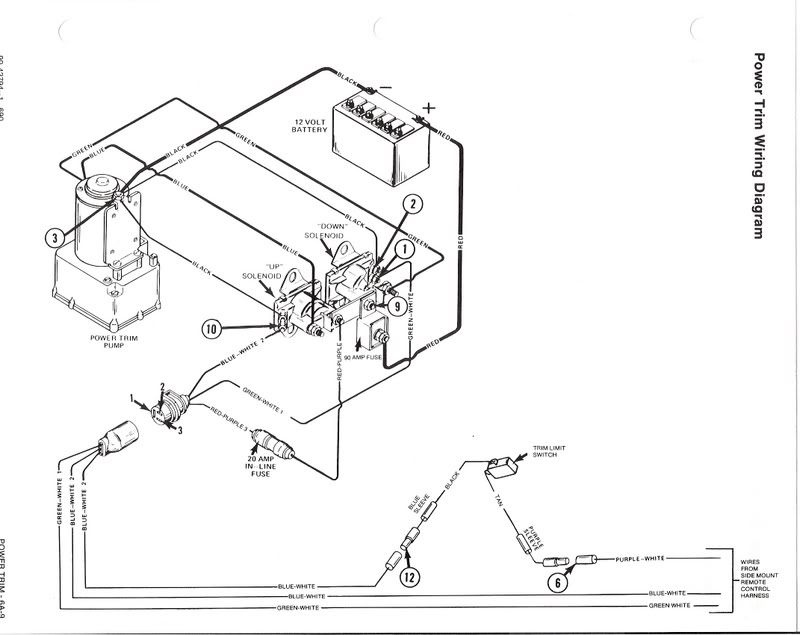

oldboater Offline Contributing Member Posts: 59 Karma: 4 Thank you received: 0	This might help... Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation.
