TOPIC: Inline six power tilt trim

Merc power tilt trim provides no reverse lock. 3 months 1 week ago #144765

  • 63 Sabre
  • 63 Sabre's Avatar
  • Offline
  • Contributing Member
  • Contributing Member
  • Posts: 4529
  • Karma: 147
  • Thank you received: 147
Gee Terry, I don't remember saying that :laugh:
Glad you found your part now you get it cleaned up, painted and working.
Congrats on your success.

Please Log in or Create an account to join the conversation.

Merc power tilt trim provides no reverse lock. 3 months 1 week ago #144767

  • Terrydi
  • Terrydi's Avatar Topic Author
  • Offline
  • Gold Boarder
  • Gold Boarder
  • Posts: 619
  • Karma: 59
  • Thank you received: 28
Thanks Cal,

But I quoted a wise man. Not a wise guy.

Just swapped out the control valve onto my pump and will reinstall in the morning.

Planning to be on the Fox river here next week and then up in Micocqua for the big show. Take a ride over and visit.

Terry

Please Log in or Create an account to join the conversation.

Merc power tilt trim provides no reverse lock. 3 months 6 days ago #144773

  • Terrydi
  • Terrydi's Avatar Topic Author
  • Offline
  • Gold Boarder
  • Gold Boarder
  • Posts: 619
  • Karma: 59
  • Thank you received: 28
Swapped the control valve out and reinstalled pump and filled system. We have reverse lock now but pump not budging the rams. Pump noisy now too.

Please Log in or Create an account to join the conversation.

Merc power tilt trim provides no reverse lock. 3 months 3 days ago #144811

  • Terrydi
  • Terrydi's Avatar Topic Author
  • Offline
  • Gold Boarder
  • Gold Boarder
  • Posts: 619
  • Karma: 59
  • Thank you received: 28
Have not figured this out yet.

Got another pump and the numbers match the original and swapped out control valves.

Put it all back together and now I’m back to where I started. Trims up and holds it but no reverse lock.
WTH

Thanks,
Terry

Please Log in or Create an account to join the conversation.

Inline six power tilt trim 3 months 3 days ago #144818

enjoyed seeing hearing and reading about your work on the motor Bravo! it is looking fantastic and i'm sure lots of fun once on the water !

Please Log in or Create an account to join the conversation.

Inline six power tilt trim 3 months 2 days ago #144821

  • 63 Sabre
  • 63 Sabre's Avatar
  • Offline
  • Contributing Member
  • Contributing Member
  • Posts: 4529
  • Karma: 147
  • Thank you received: 147
Hey Terry. Surprised none of the Merc gurus haven't chimed in yet. I'm not a Merc guy and don't know how the system works but it's hydraulic, fluid either goes in or out. You know the pump is good. Is the pump supposed to reverse and draw the fluid back or is there just a relief valve? Maybe it's over filled so there's no place to relieve the fluid to? If you open the fill hole while the motor is up is there pressure and oil squirting all over you or just air. Might be air bound? Try running the up/down cycle with the fill cap off....put on your rain suit just in case. Just some thoughts.

Please Log in or Create an account to join the conversation.

Inline six power tilt trim 3 months 1 day ago #144831

  • Terrydi
  • Terrydi's Avatar Topic Author
  • Offline
  • Gold Boarder
  • Gold Boarder
  • Posts: 619
  • Karma: 59
  • Thank you received: 28
FDL we have Reverse Lock!

Kept bleeding and filling and it finally locked.
I’m up to my elbows in trans fluid and I don’t care. WhaHoo!

Thanks guys.
Terry

Please Log in or Create an account to join the conversation.

Inline six power tilt trim 3 months 1 day ago #144834

  • 63 Sabre
  • 63 Sabre's Avatar
  • Offline
  • Contributing Member
  • Contributing Member
  • Posts: 4529
  • Karma: 147
  • Thank you received: 147
whoot! Calls for a celebration. Have a few for us also.
Glad you got 'er movin'

Please Log in or Create an account to join the conversation.

Inline six power tilt trim 3 months 1 day ago #144839

  • ed-mc
  • Offline
  • Platinum Boarder
  • Platinum Boarder
  • Posts: 1204
  • Karma: 230
  • Thank you received: 61
Yay! Perseverance has paid off!

Please Log in or Create an account to join the conversation.

Inline six power tilt trim 3 months 1 day ago #144840

  • Dr.Go!
  • Dr.Go!'s Avatar
  • Offline
  • Contributing Member
  • Contributing Member
  • Posts: 1622
  • Karma: 18
  • Thank you received: 99
Just in time for the Minocqua show next week… I hope! Congratulations.

Please Log in or Create an account to join the conversation.

Dr.Go!

Inline six power tilt trim 2 months 4 weeks ago #144849

  • Terrydi
  • Terrydi's Avatar Topic Author
  • Offline
  • Gold Boarder
  • Gold Boarder
  • Posts: 619
  • Karma: 59
  • Thank you received: 28
Thanks guys and still plugging along up here in the holler.

Have the trim limit wired and functional. Also cleaned the contacts on the 3-button control and cut back and resoldered the connections. All seems to be working as designed now.

When I first reassembled the lower unit, I found I had a bad lower water pump base.

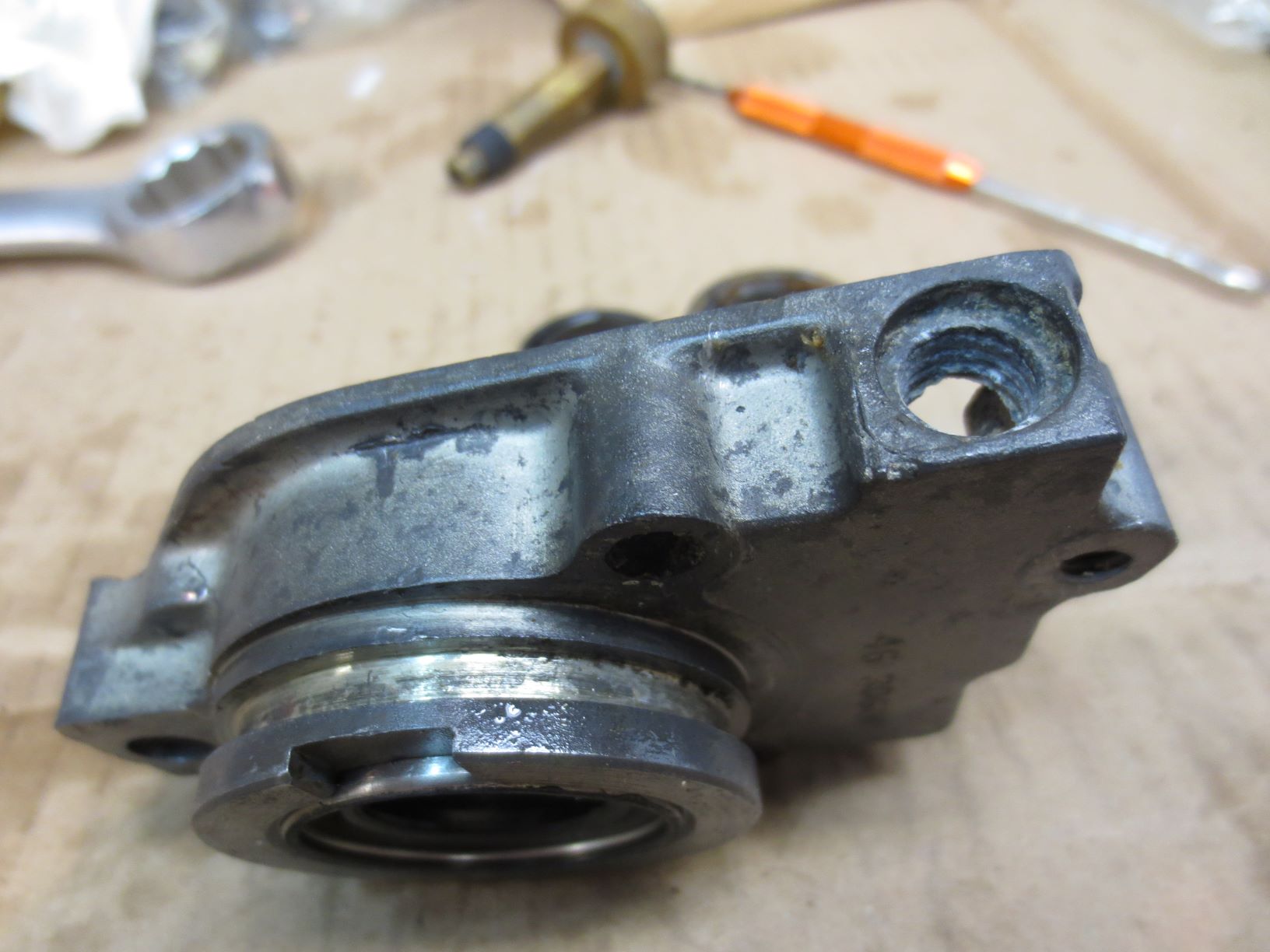

Threads on pump drain plug were corroded and was simply reassembled with a dab of silicon, and it held.

Later found a replacement pump base but never got it done and there is no time like now. Had new seals too and got it back together now but gotta hook up to water and test. Always tricky shoving that lower back in the housing and getting everything where it needs to be. But it’s simplified now without the mechanical reverse lock mechanism.

Dr Go,
Hope you can come up and visit. Should be a great turnout with lots of friends coming up from IL with real pretty boats.

Thanks,
Terry
Attachments:

Please Log in or Create an account to join the conversation.

Inline six power tilt trim 2 months 4 weeks ago #144852

  • Dr.Go!
  • Dr.Go!'s Avatar
  • Offline
  • Contributing Member
  • Contributing Member
  • Posts: 1622
  • Karma: 18
  • Thank you received: 99
Great progress. Glad you are getting things fixed the way you want. I will look for you Friday. I need a classic and glassic boat fix.

Please Log in or Create an account to join the conversation.

Dr.Go!

Inline six power tilt trim 2 months 4 weeks ago #144856

Sometimes hydraulics can be as frustrating as wiring. Most times it takes perserverance, as you well know.
Bill

Please Log in or Create an account to join the conversation.

Inline six power tilt trim 2 months 4 weeks ago #144872

Technically,...Your style power trim uses 10w-30, but I've seen some with full of ATF and still working okay.
doc

Please Log in or Create an account to join the conversation.

Inline six power tilt trim 2 months 3 weeks ago #144874

Hi all! Brand new to this site and in desperate need of help!

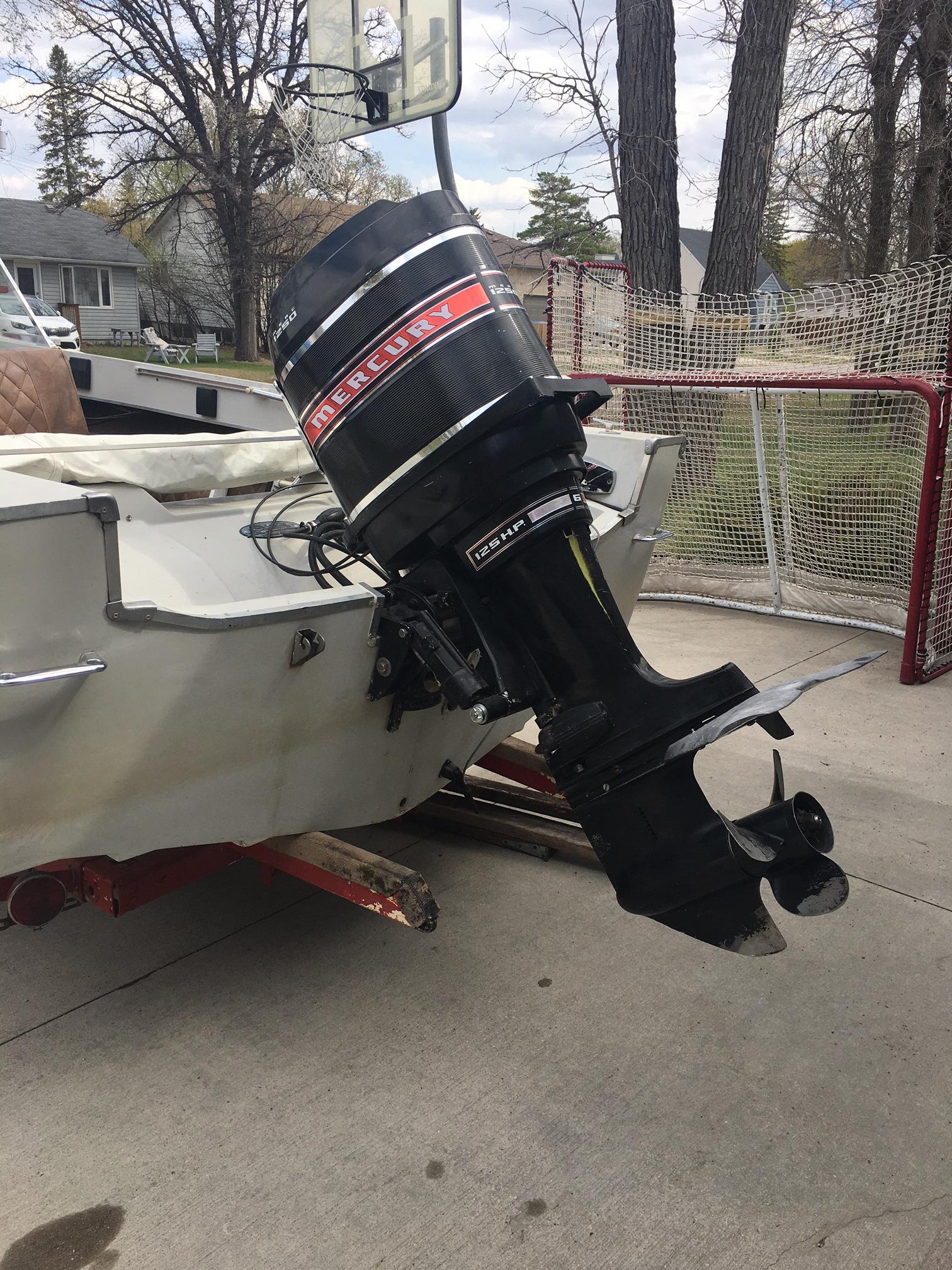

Bought a 1967 17.5' Northcraft with a 1969 Merch 1250hp on the back with power trim, seperate up/down toggle switches in the dash. Trim worked well on our first outing but coming back from our second outing I noticed I could no longer trim the motor up. Got to the dock and discovered trim was dead. The down trim toggle was seized and the motor was stuck in the down position. Not having access to any "what to do" info, I disconnected the top of the cylinders from the motor to be able to lift the motor up.

I have it home now and need to figure out what's going on. I'm fearful that I've burnt out the trim motor.

My plan is to:
-disconnect the up/down toggle switches from the solenoid
-jump passed the solenoid to see if the trim motor spins
-If is spins, I'll replace the solenoid
-If it does NOT spine . . . I'm screwed . . . :(

My question is . . . on this unit, how to I bypass the solenoid? It's a single solenoid unit, looks the same as the unit someone else post a pic of on page 2. I think I can identity the up/down sides of the solenoid from the wiring coming from the dash, but where should I touch the battery positive to see if the motor spins?

Any help would be GREATLY appreciated.

Thanks!

(Some pics attached)
Attachments:

Please Log in or Create an account to join the conversation.

Inline six power tilt trim 2 months 3 weeks ago #144883

Your trim motor has (3) wires coming out of the motor.
The large black is ground (-)
The large blue is for "UP"
The large green is for "DOWN"
Connect a large jumper wire #10 or #8 size, between your battery (+) and the large Blue wire.
You should hear the trim motor running.
Then jump from battery (+) to the large green wire, and the trim motor should run.
If you don't hear any noise from either direction, the trim motor has failed.
If the trim motor runs, replace the solenoid(s)
Some only have (1) solenoid for "UP", and the large green just connects to the small green on a terminal block.
If you suspect your trim switch has failed, connect a small jumper wire #14 +/- to your Battery (+) and the small Blue wire on the solenoid.
If the trim motor runs, the solenoid worked.
doc

Please Log in or Create an account to join the conversation.

Inline six power tilt trim 2 months 3 weeks ago #144884

  • ed-mc
  • Offline
  • Platinum Boarder
  • Platinum Boarder
  • Posts: 1204
  • Karma: 230
  • Thank you received: 61
More good words from the Doc! Stay cool down there, gonna be over 100 on Sunday and 108 on Monday. Whew!!

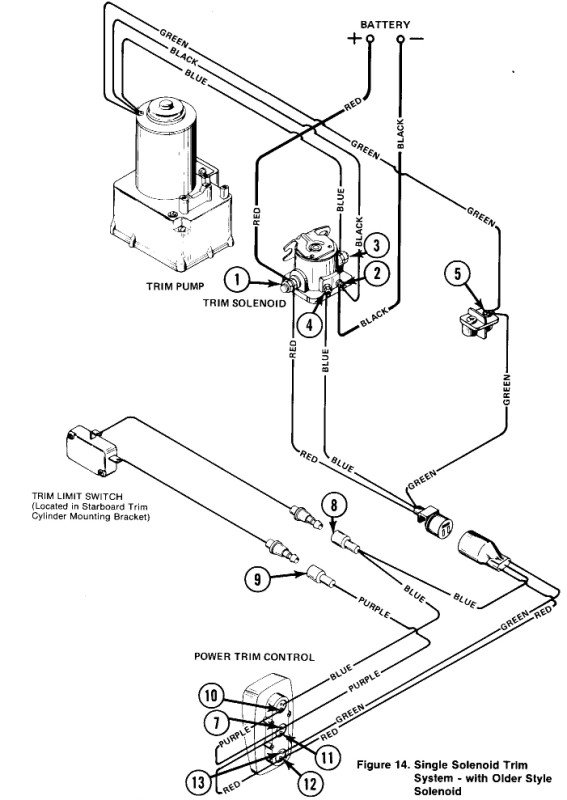

I found a pretty decent wiring diagram for a single-solenoid Merc PT&T unit, maybe that'll help..........ed
Attachments:

Please Log in or Create an account to join the conversation.

Inline six power tilt trim 2 months 3 weeks ago #144885

Your trim motor has (3) wires coming out of the motor.
The large black is ground (-)
The large blue is for "UP"
The large green is for "DOWN"
Connect a large jumper wire #10 or #8 size, between your battery (+) and the large Blue wire.
You should hear the trim motor running.
Then jump from battery (+) to the large green wire, and the trim motor should run.
If you don't hear any noise from either direction, the trim motor has failed.
If the trim motor runs, replace the solenoid(s)
Some only have (1) solenoid for "UP", and the large green just connects to the small green on a terminal block.
If you suspect your trim switch has failed, connect a small jumper wire #14 +/- to your Battery (+) and the small Blue wire on the solenoid.
If the trim motor runs, the solenoid worked.
Check the connections in the red connector on the trim motor that has the small wires that go to the dash trim switch.
doc

Please Log in or Create an account to join the conversation.

Inline six power tilt trim 2 months 3 weeks ago #144887

  • Dr.Go!
  • Dr.Go!'s Avatar
  • Offline
  • Contributing Member
  • Contributing Member
  • Posts: 1622
  • Karma: 18
  • Thank you received: 99
I met up with Terry and his better half yesterday as he displayed his boat… when I asked him about the trim, he said he got it working in time just before the show. Though he may be busy at the moment, I am confident all of your help got him to this show in the Nick of time. What a great website full of amazing people with professional skills helping the rest of us so we can all get out on the water. I should have had a boat ready for this show. I am sure Terry will eventually share pictures with everyone! Thanks to all as I learn from different threads every day! You guys rock!

Please Log in or Create an account to join the conversation.

Dr.Go!

Inline six power tilt trim 2 months 3 weeks ago #144890

  • Terrydi
  • Terrydi's Avatar Topic Author
  • Offline
  • Gold Boarder
  • Gold Boarder
  • Posts: 619
  • Karma: 59
  • Thank you received: 28
Hey Dr Go,

Thanks for coming up to visit and bringing your sweetheart.


Finished the motor in time for the show although I finally got er done on Lake Minocqua the day before.

And it took a little docktering to make it go. Did not have time to put it in the water here at home, but everything worked so we journeyed up to the Northwoods and launched. Had to adjust the knob on the shift cable to get in reverse but no biggy.

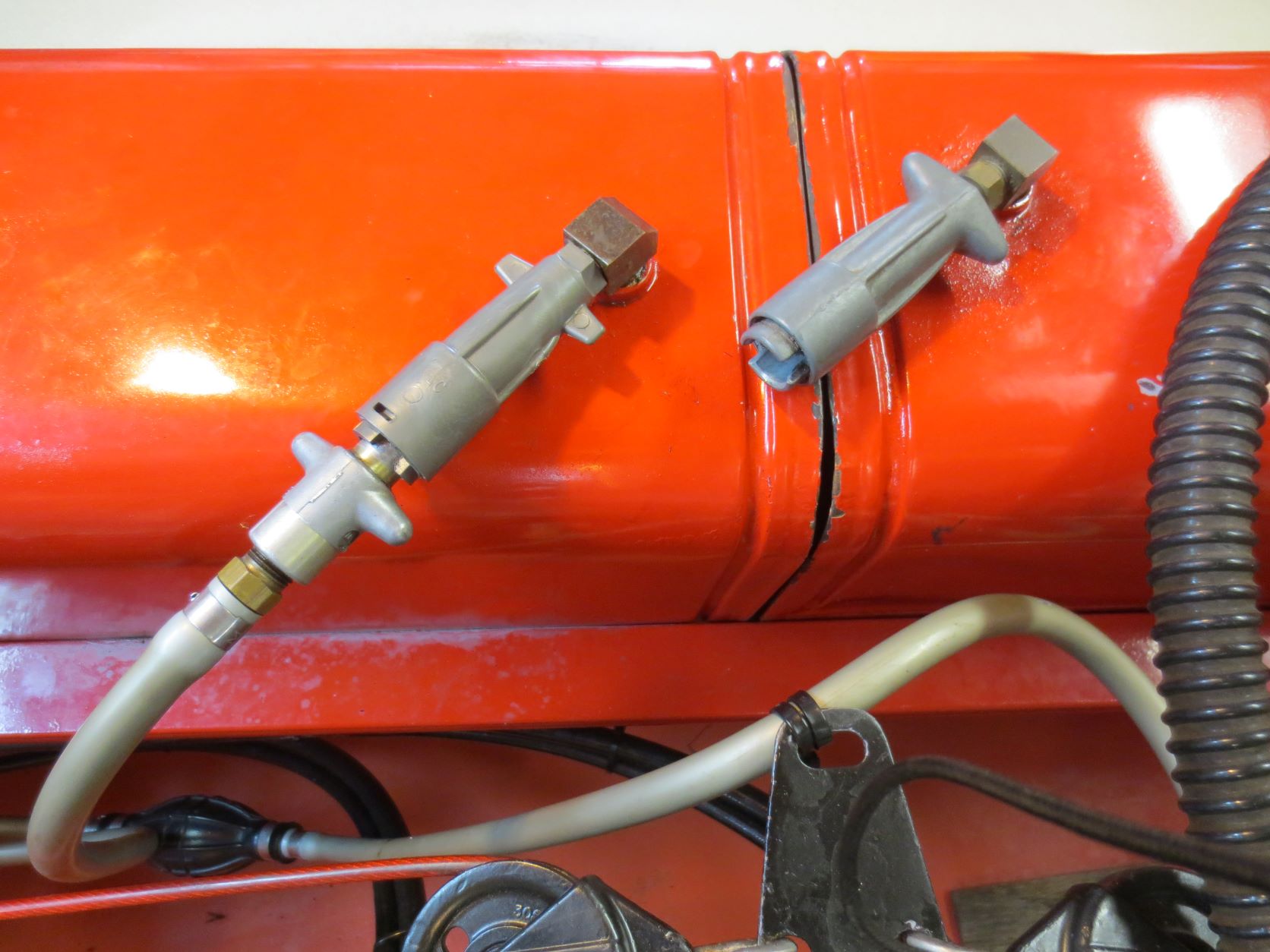

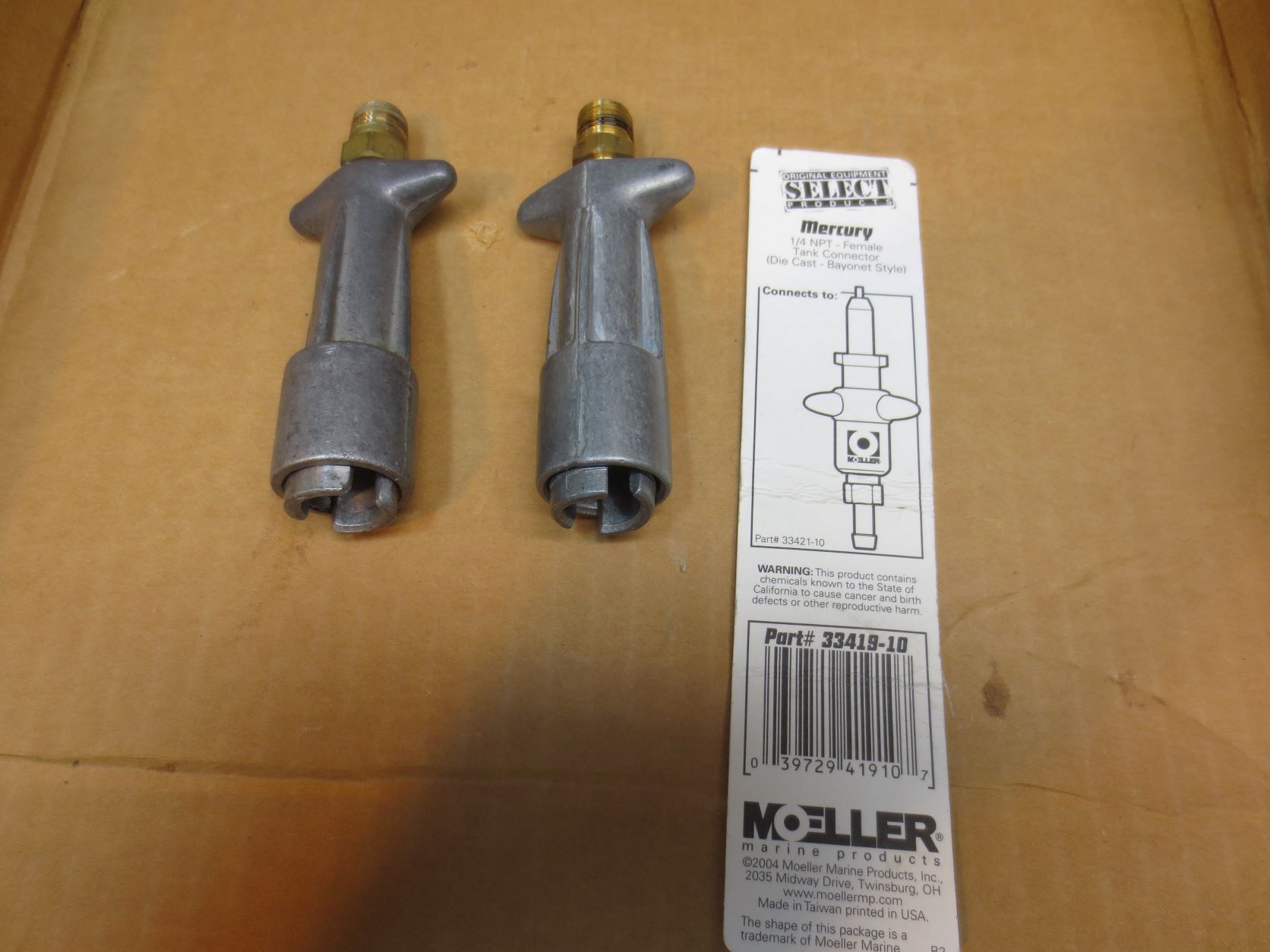

Then had a problem not getting enough gas. Turns out the Mueller tank connector was sucking air. Found the tank fitting was falling apart. I had a pair of 12” channel locks so I squeezed it back together and was able to get back port. It was brand new out of the package the day before.

I got a second tank but I knew that connector had a sloppy fit too and had sucked before.
This is a problem I had previously and complained to Mueller. They responded by sending me 4 new fittings for free, and now they all are shot.

Luckily, I had onboard an adapter I fitted to connect a modern Merc tank to the old Mercs. The female connector was plastic but the fit was tight. Pulled the dip tube and swapped it out.

Now the old Merc 800 is running best ever. Clocked 35 mph WOT.


Lets go motor boatin.

Hey Dr Frankenmerc,

Thanks again for your input. The last thing I did before I hit the road, and thinking of you, was to put the correct top hat on this old Merc.



Thanks All,
Terry
Attachments:

Please Log in or Create an account to join the conversation.

Inline six power tilt trim 2 months 3 weeks ago #144891

  • 63 Sabre
  • 63 Sabre's Avatar
  • Offline
  • Contributing Member
  • Contributing Member
  • Posts: 4529
  • Karma: 147
  • Thank you received: 147
Good to see you guys had a good time. Perfect weather makes all the troubles trivial.
Never did like those "quick" disconnects on fuel tanks. Got to the point where I just connected the fuel line direct to the pickup tube and motor with hose clamps. Not much of an issue since the full tanks were always too heavy to put in the boat anyway.

Please Log in or Create an account to join the conversation.

Inline six power tilt trim 2 months 3 weeks ago #144903

  • Dr.Go!
  • Dr.Go!'s Avatar
  • Offline
  • Contributing Member
  • Contributing Member
  • Posts: 1622
  • Karma: 18
  • Thank you received: 99
Nice job overcoming those things that try to dry dock us! I did notice you had 2 vertical tanks hidden neatly in there. If you ever want a vertical Merc tank 18 gallon, I have a pretty nice original one I haven’t used yet because my boat is too shallow being both short shaft and a shallow center because of the cat hull.., it sticks way above the gunnels. Really good to see you and to meet your wife and also meet some of your friends. Great people and lots of nice boats. I will bring a glass boat next year… we need more glass boats there… but the wooden and aluminum ones were pretty sweet too!

Please Log in or Create an account to join the conversation.

Dr.Go!

Inline six power tilt trim 2 months 2 weeks ago #144925

35 MPH is pretty darn cool!
The 800fgs is just 76ci, compared to the later Tower(s) of Power that have 90ci, 93ci, and 99ci.
And 800fgs is just so smooth. One of Mercury's finest models, IMHO.
doc
Yuppp,...I have a "few" myself.

Please Log in or Create an account to join the conversation.

Inline six power tilt trim 2 months 1 week ago #144952

  • Terrydi
  • Terrydi's Avatar Topic Author
  • Offline
  • Gold Boarder
  • Gold Boarder
  • Posts: 619
  • Karma: 59
  • Thank you received: 28

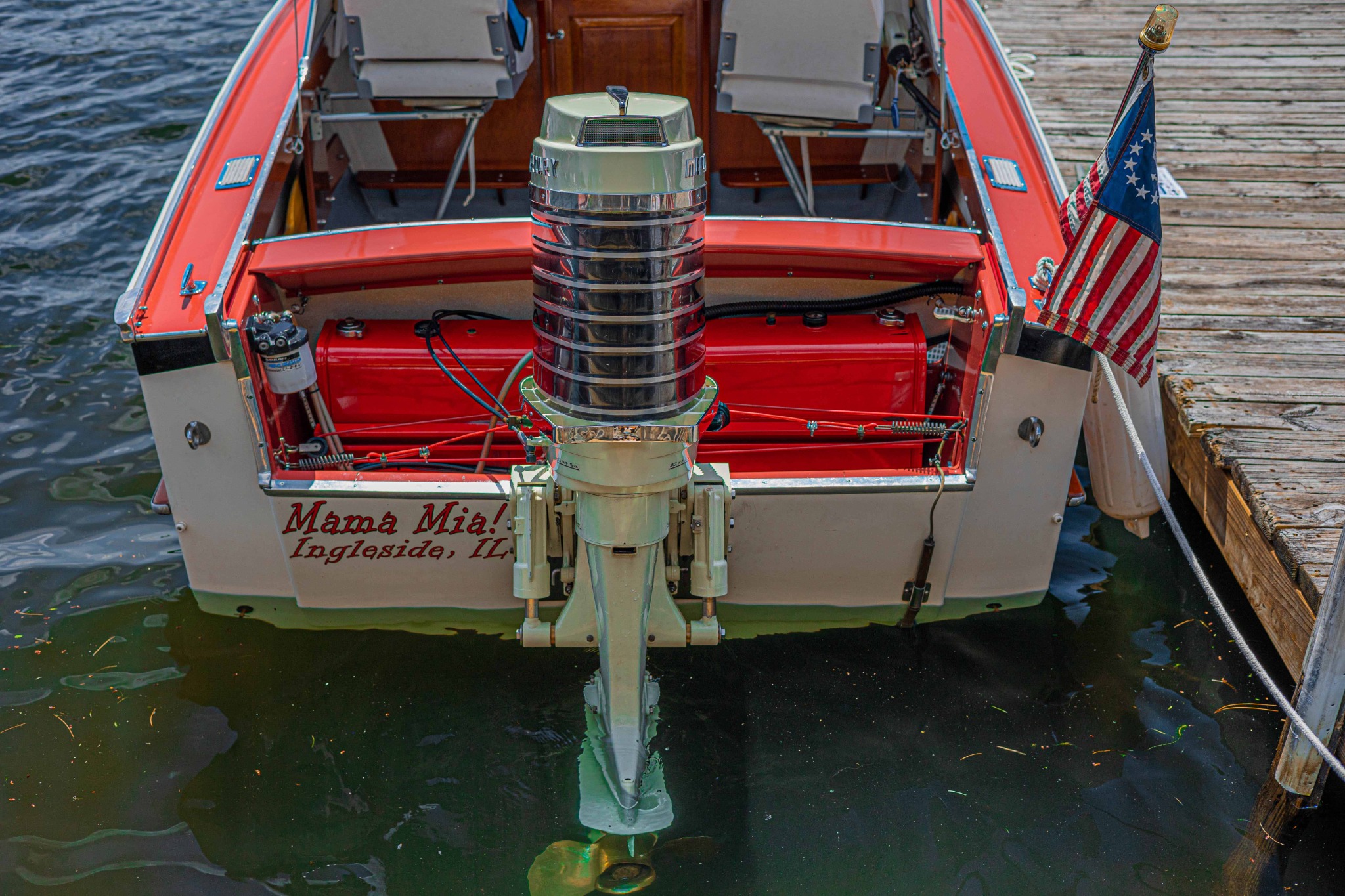

Thanks Guys!

Everything worked out fine and we got er done.

The hair was standing up on the back of my neck at 35 and later saw 36. Best before that was 33 and I was going downriver. Power trim is awesome on this old boat and taking a lesson as I go along on using it.

That is an interesting comment on the displacements Doc

It’s a good thing you motivated me to change out for the deluxe top cowl.
Click on it:

It took a lot of messin around but Doc “Its Alive!”

Terry
Attachments:

Please Log in or Create an account to join the conversation.

Inline six power tilt trim 1 month 3 weeks ago #145056

  • Terrydi
  • Terrydi's Avatar Topic Author
  • Offline
  • Gold Boarder
  • Gold Boarder
  • Posts: 619
  • Karma: 59
  • Thank you received: 28
Hey Guys,

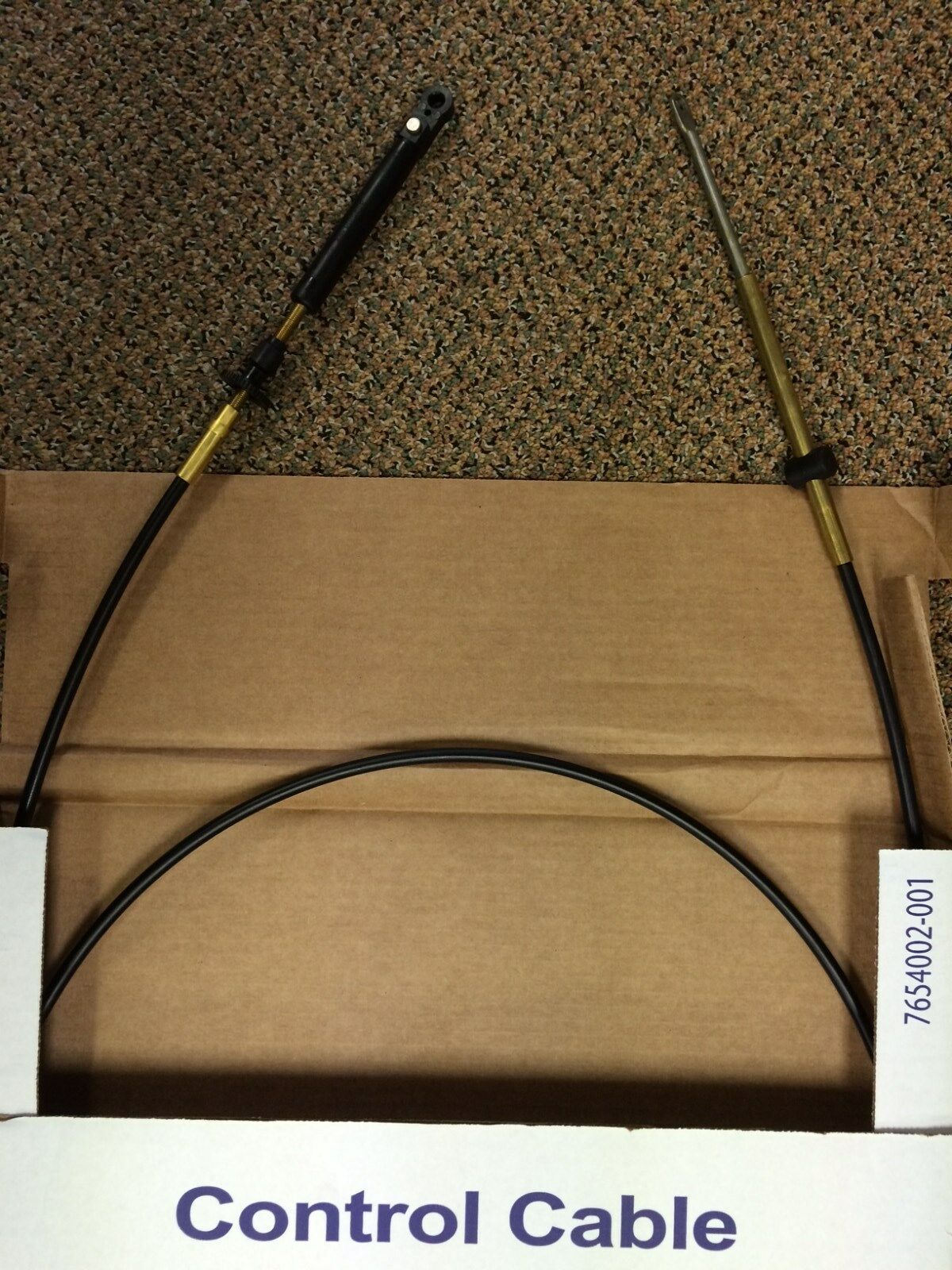

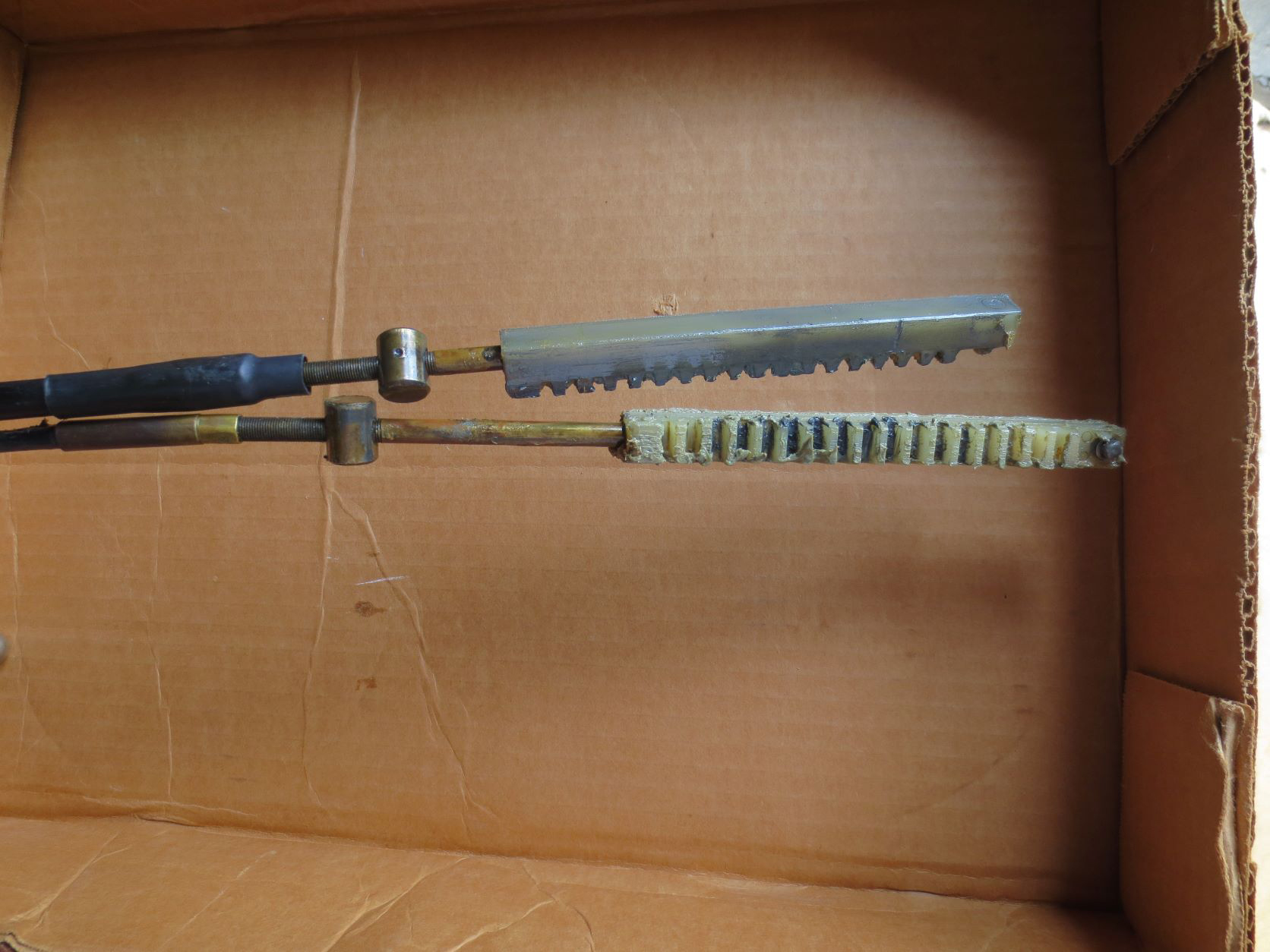

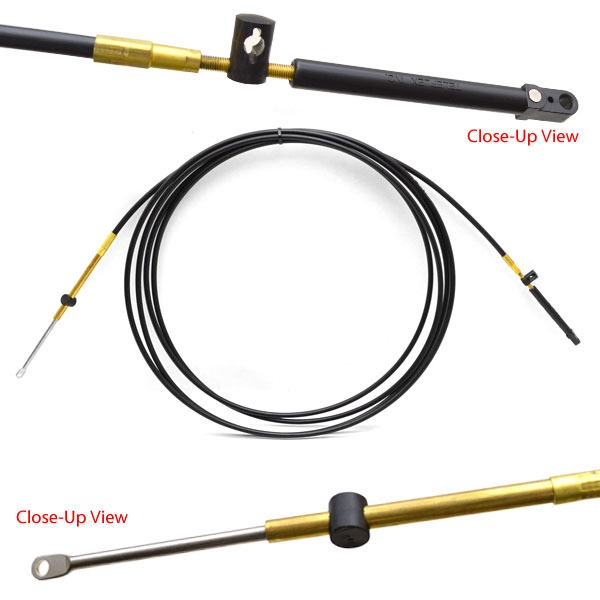

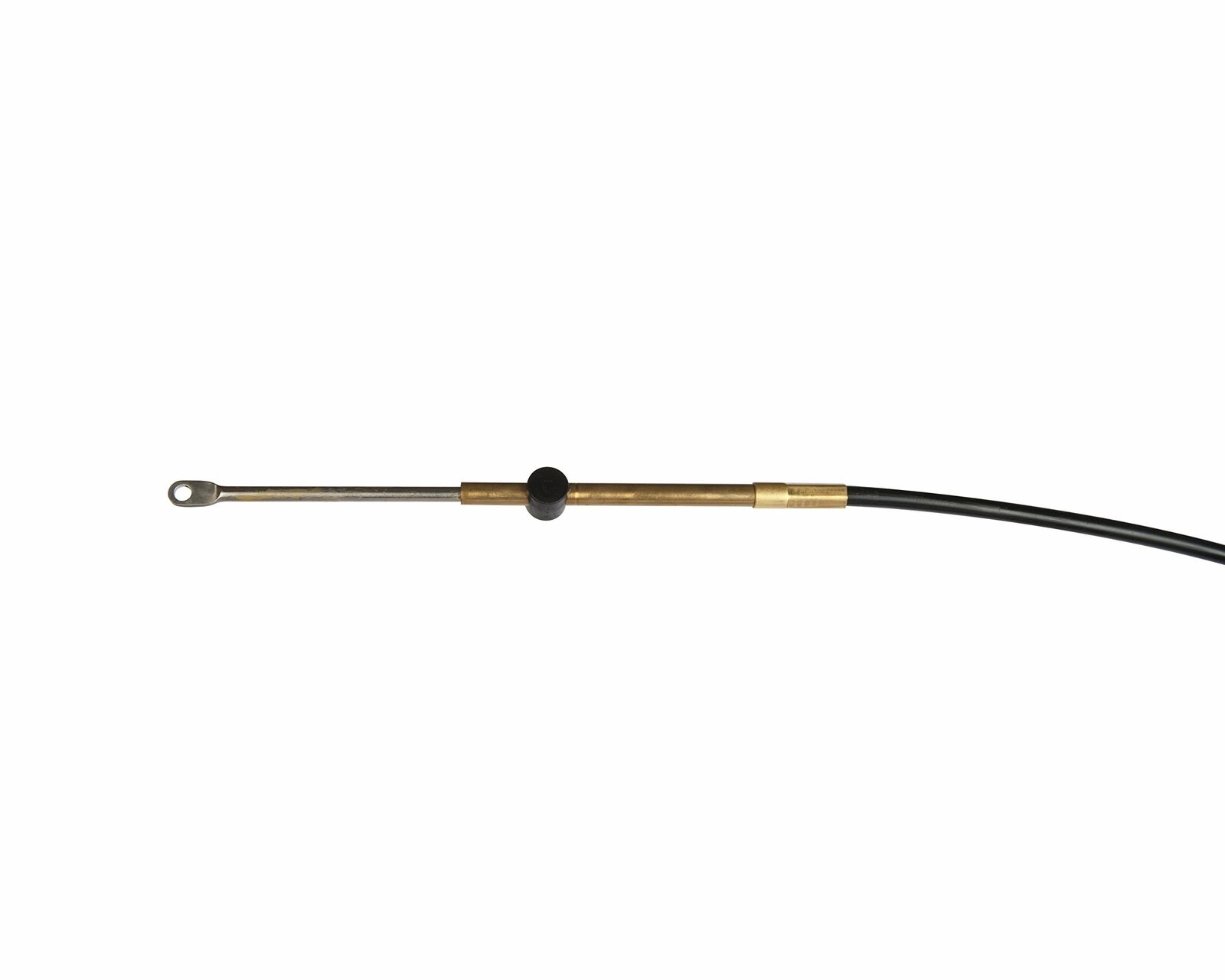

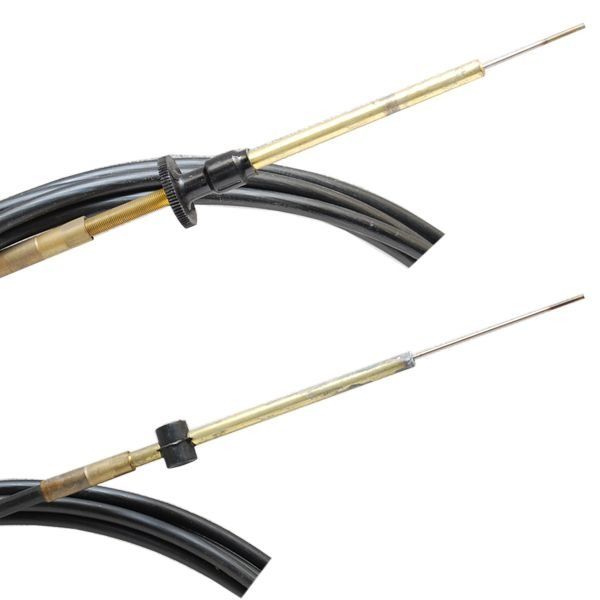

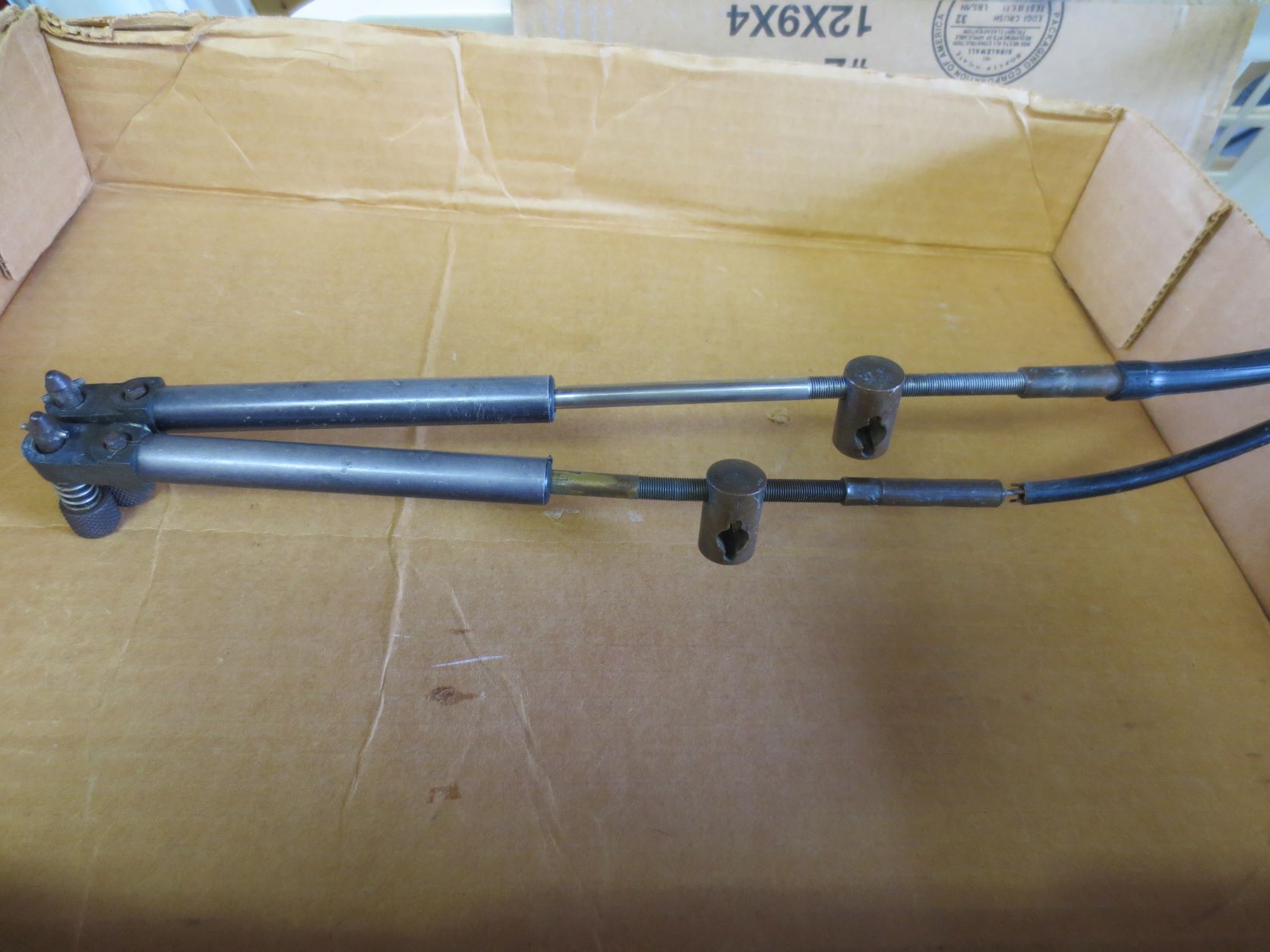

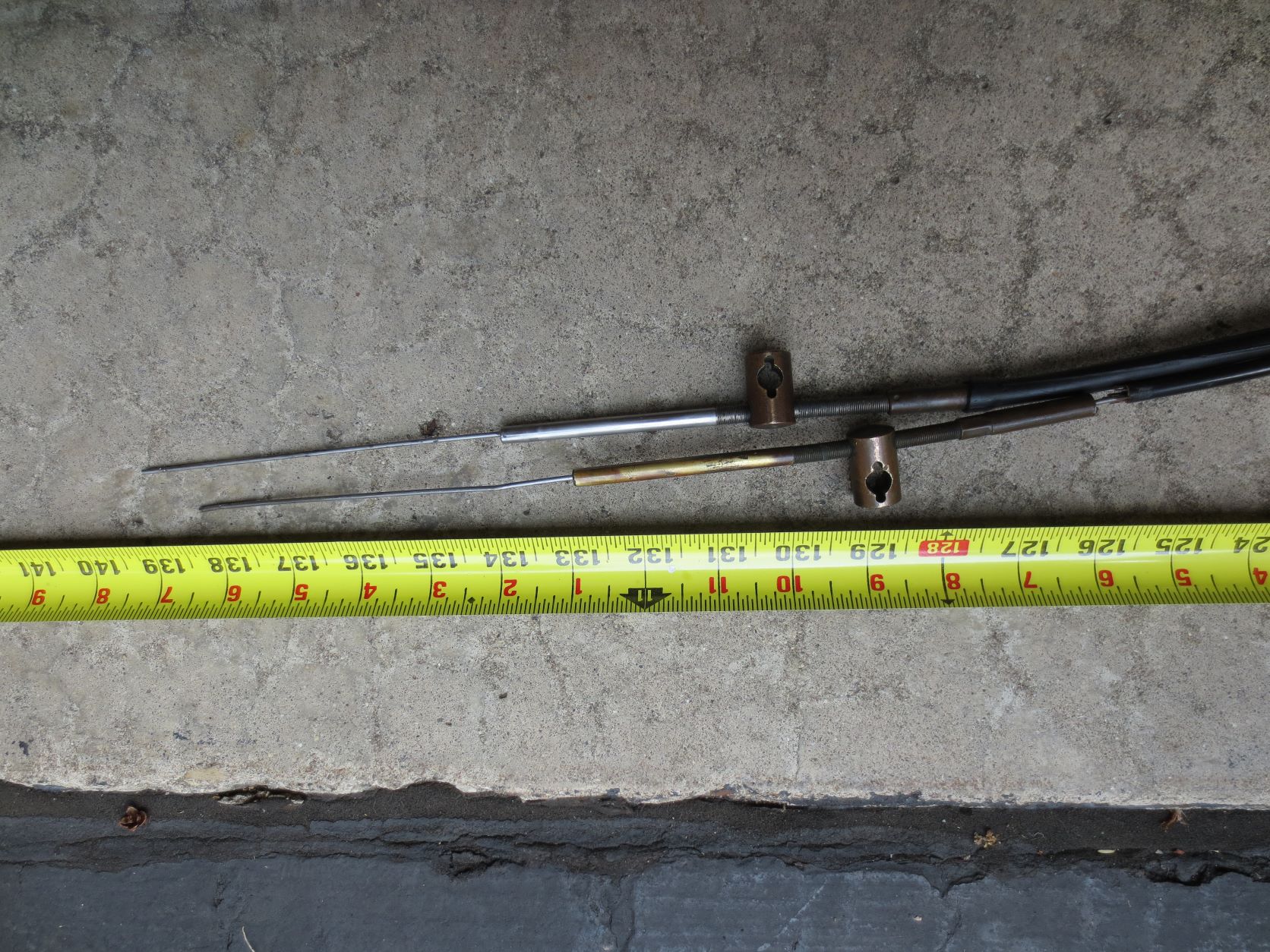

Mama Mia! back in dry dock now after busting the shifter cable.

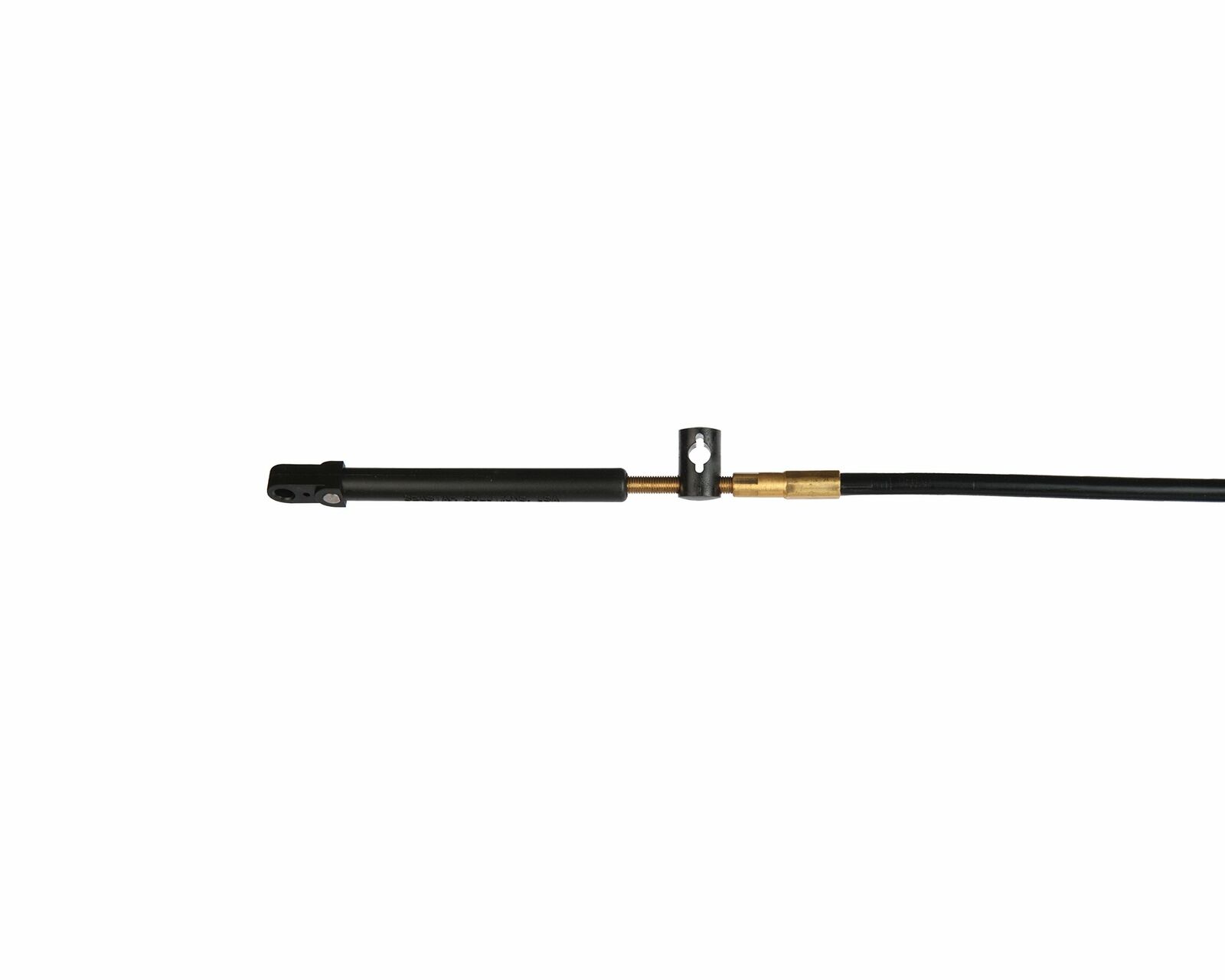

I can’t find anything other than what Merc offered back in the day which is NLA.
Talked to a fellow up in the Northwoods and he says he converts Merc Gen I Teleflex cables for use on the old Mercs.


Says I can use existing ends at motor and control.


Also says he has original Mercury fitting to replace this Moller stuff that literally falls apart.
They glue in that metal insert that holds the connector in place and it pops right out.


Plastic connector on left OK but the metal one on the right sucks.

Any recommendations on the cables appreciated.

Thanks,
Terry
Attachments:

Please Log in or Create an account to join the conversation.

Inline six power tilt trim 1 month 3 weeks ago #145059

OMC naked pre 69 cables can be easy change with your brass ends. teleflex makes them

Please Log in or Create an account to join the conversation.

Inline six power tilt trim 1 month 3 weeks ago #145064

I've never tried to use the OMC cables Dave suggests, but I do know that the '70s+ Merc cables do not have the extended movement required for the old oval control box.
I am definitely interested is a success story regarding use of the OMC cables Dave suggests.
If they allow the extended motion required for the old oval Merc control box,...That sounds like a very cool fix.
Otherwise,...I typically repair the issue you have with silver solder.
doc

Please Log in or Create an account to join the conversation.

Inline six power tilt trim 1 month 3 weeks ago #145065

  • 63 Sabre
  • 63 Sabre's Avatar
  • Offline
  • Contributing Member
  • Contributing Member
  • Posts: 4529
  • Karma: 147
  • Thank you received: 147
Terry, what's the length of the cable you need?
I have a new one in a box that I was going to donate to the Door County boat yard sale. I also have some older ones that might work/ Would the old OMC ends work? i will mail you the complete box of stuff if you want. No charge! Gotta get rid of it all that's why I'm giving it all away. Bling etc.

Please Log in or Create an account to join the conversation.

Inline six power tilt trim 1 month 3 weeks ago #145069

  • Terrydi
  • Terrydi's Avatar Topic Author
  • Offline
  • Gold Boarder
  • Gold Boarder
  • Posts: 619
  • Karma: 59
  • Thank you received: 28
Thanks for the response guys.

Dave,


This is supposed to be pre 69 OMC but not sure how to make that work.

This is more like the old merc style.
www.marineengineparts.com/seastar-solutions-ccx17911-merc-600a-series-xtreme-control-cable-assembly






Guessing the center brass piece simply screws into the replacement cable end.

Doc,
You mention “the '70s+ Merc cables do not have the extended movement required for the old oval control box”
Are you referring to the adjustment required in the control?




This is threaded and and is not adjustable on the new style.

Cal,


Looks like an 11-footer to me. All equal on opposite ends.

I believe the cable end with the stainless tube is original and would have been C-29564-11S.
C-20015-11S also fits FGS controls according to the manual.

Terry

Please Log in or Create an account to join the conversation.

Inline six power tilt trim 1 month 3 weeks ago #145071

on the omc cables, just unscrew the ends and install them into the Omc they are the same threads. IF the inner wire is to short just replace it with a longer inner wire and cut to length. I have not had to do that yet.
1 914 310 7086

Please Log in or Create an account to join the conversation.

Inline six power tilt trim 1 month 3 weeks ago #145073

  • 63 Sabre
  • 63 Sabre's Avatar
  • Offline
  • Contributing Member
  • Contributing Member
  • Posts: 4529
  • Karma: 147
  • Thank you received: 147
Terry, I sent you a mail about cable and ends.
Cal

Please Log in or Create an account to join the conversation.

Inline six power tilt trim 1 month 3 weeks ago #145075

  • Terrydi
  • Terrydi's Avatar Topic Author
  • Offline
  • Gold Boarder
  • Gold Boarder
  • Posts: 619
  • Karma: 59
  • Thank you received: 28
Cal,
The email messaging here does not work.

Dave,
We may be on to something here.

Teleflex is now Seastar and this part looks like what I need.



www.fisheriessupply.com/teleflex-marine-pre-1979-omc-engine-cables/cc17011

Thanks,
Terry
Attachments:

Please Log in or Create an account to join the conversation.

Inline six power tilt trim 1 month 3 weeks ago #145076

YEP !!!!!!

Please Log in or Create an account to join the conversation.

Inline six power tilt trim 1 month 3 weeks ago #145077

  • 63 Sabre
  • 63 Sabre's Avatar
  • Offline
  • Contributing Member
  • Contributing Member
  • Posts: 4529
  • Karma: 147
  • Thank you received: 147
Found out about the mail. What we used to call in my old Navy days as an RM...it's a "non D"
I'll take some pics of what I have and if you could use them I'll mail 'em.

Please Log in or Create an account to join the conversation.

Inline six power tilt trim 1 month 3 weeks ago #145087

  • Terrydi
  • Terrydi's Avatar Topic Author
  • Offline
  • Gold Boarder
  • Gold Boarder
  • Posts: 619
  • Karma: 59
  • Thank you received: 28
Talked to Seastar Solutions which controls Teleflex now. Tech guy there says the control end tube does not screw off on the OMC pre 79 cables. The guy was with Teleflex 20 yrs and says they do not offer the naked cables.

John MacIntosh up in WI modifies the Merc Gen I cable by Teleflex to work on the old Mercs.

On the motor side he replaces the end tube with a tube he had manufactured to fit. And then will be able to use the original anchor tube.

Then the nylon gear rack he provides is routed out to accept the cable end as provided by Teleflex.

Should have by the weekend.

Thanks all,
Terry
Attachments:

Please Log in or Create an account to join the conversation.

Inline six power tilt trim 1 month 3 weeks ago #145107

  • Dr.Go!
  • Dr.Go!'s Avatar
  • Offline
  • Contributing Member
  • Contributing Member
  • Posts: 1622
  • Karma: 18
  • Thank you received: 99
John is a great guy and I have purchased a few items from him in the past. He comes to the National Antique Outboard Motor show in Tomahawk Wisconsin which is usually Wednesday through Saturday the first weekend of August. If you want to do another Road trip Terry, perhaps you can even find some original cables as backup. I have purchased lots of outbound goodies there over the years. Lots of good info on this thread from the experts!!

Please Log in or Create an account to join the conversation.

Dr.Go!

Inline six power tilt trim 1 month 3 weeks ago #145118

  • Terrydi
  • Terrydi's Avatar Topic Author
  • Offline
  • Gold Boarder
  • Gold Boarder
  • Posts: 619
  • Karma: 59
  • Thank you received: 28
Hello Marc,

Yeah, that’s next weekend and is on my list for sure.

The cable shipped yesterday so hope to able to float Mama Mia! again soon.
John Mc had genuine Merc tank connectors too so hope to solve the fuel delivery issue as well.


Still in dry dock but having a better day than these guys.

Thanks,
Terry
Attachments:

Please Log in or Create an account to join the conversation.

Inline six power tilt trim 1 month 3 weeks ago #145120

  • Dr.Go!
  • Dr.Go!'s Avatar
  • Offline
  • Contributing Member
  • Contributing Member
  • Posts: 1622
  • Karma: 18
  • Thank you received: 99
I bought my authentic Merc Decals from John. Sounds like you have things under control. Nice to see Mama Mia floating high… sad anytime I see a sunken boat.

Please Log in or Create an account to join the conversation.

Dr.Go!

Inline six power tilt trim 1 month 3 weeks ago #145122

Terry,
Do you know,...Are these Hurricane victim boats?
doc

Please Log in or Create an account to join the conversation.

Inline six power tilt trim 1 month 2 weeks ago #145135

  • Terrydi
  • Terrydi's Avatar Topic Author
  • Offline
  • Gold Boarder
  • Gold Boarder
  • Posts: 619
  • Karma: 59
  • Thank you received: 28
Hello Docs,

Yes, its humbling to view something like that close up.

Those wrecks were on an industrial canal off the south branch of the Chicago River.
The boat that ran aground had severe stern damage and there is a lot of barge traffic down there.
Both appear to have mooring covers still attached so probably got hit while docked and that’s where they landed.
I asked around and nobody knew nuthin, it’s the Chicago Way.


The north branch of the river has more recreational traffic and there one stretch that leads out to the Chicago Harbor Lock that should be on everybody's list.


Cruising this river canyon that slices low through Chicago's architectural cityscape can be magical.




We renamed this building at Goose Island "Tower of Power"

And its got its gritty parts too.


Decrepit old swivel bridge and a piles of recycled automobiles and major appliances line the shore.


Urban Boating is a blast and we are planning to be down on the river with Mama Mia! next month.



Should have parts tomorrow and hopefully the old Merc running again next week out on the Fox.

Thanks,
Terry

Photos courtesy of King Oskie

Please Log in or Create an account to join the conversation.

Time to create page: 0.385 seconds

FG Login

Donate

Please consider supporting our efforts.

Glassified Ads

FiberGoogle

Who's Online

We have 8305 guests and 2 members online
