TOPIC: wiring a horn
wiring a horn 12 years 11 months ago #49215
|

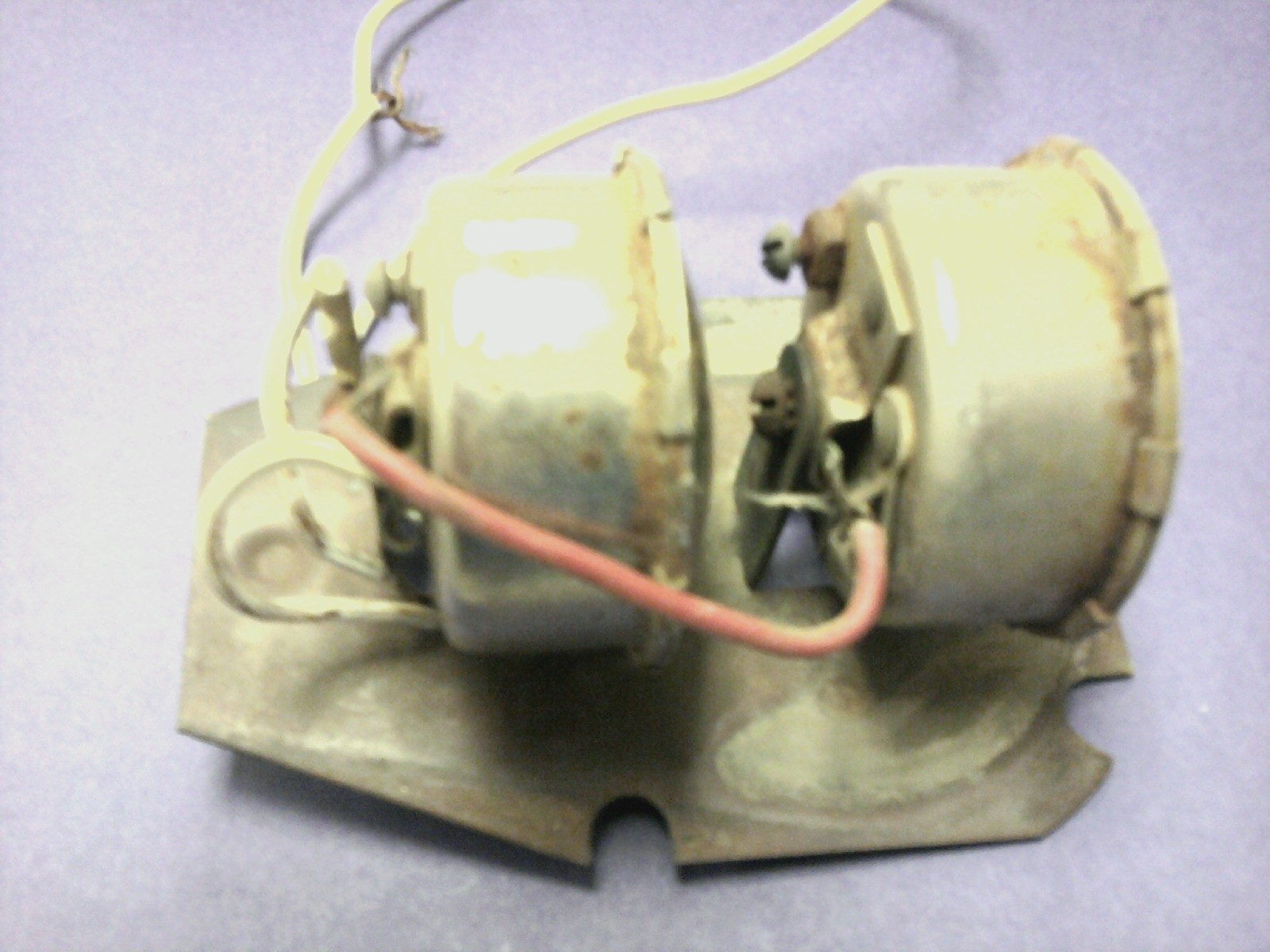

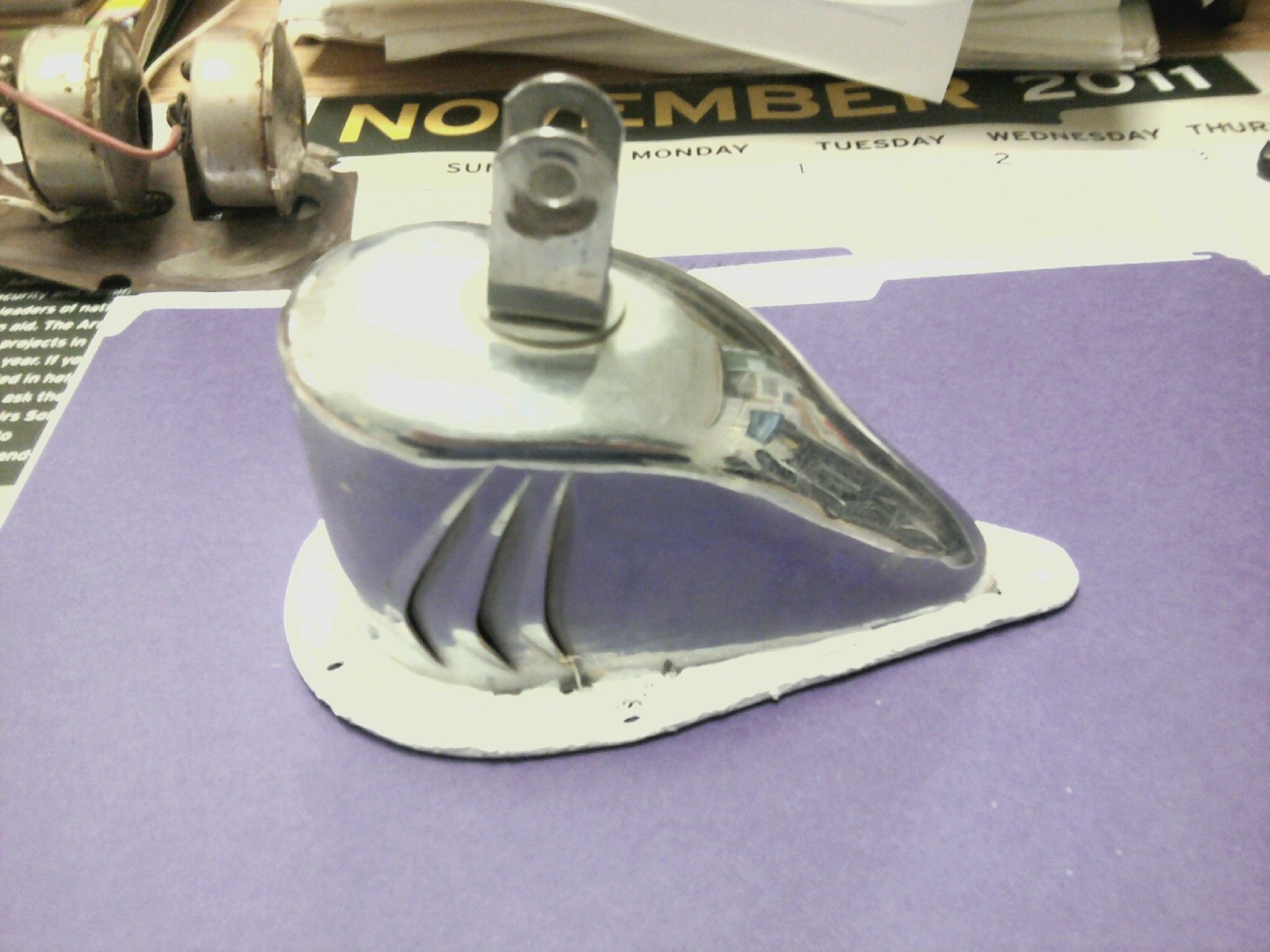

The horn I have had many missing wires. I have no clue where they go or what have you. I'll include pics of both sides of the horn and the case that went over it. I assume there must have been a trumpet on top of the case (if anyone has a spare trumpet email This email address is being protected from spambots. You need JavaScript enabled to view it.). thanks for the help.
|
|
|
Please Log in or Create an account to join the conversation. |
Re:wiring a horn 12 years 11 months ago #49219
|
This is somewhat confusing. Are those terminals on top of the case for a plug? I only ask because that's what they look like, and would not be unusual for a horn.
Horns are pretty simple. Complete the circuit, HONK, interrupt the circuit, nothing. I test stuff like this with an old 12V battery I keep in the shop (actually, at last count, 3 of them!), and with test leads with little battery clips on them. Usually horns are wired to a two position button that connects the circuit when pushed. Not sure what else to suggest. Most of the diagrams I can find include a relay and fuse. Frank
|
|
Please Log in or Create an account to join the conversation. |
Re:wiring a horn 12 years 11 months ago #49223
|

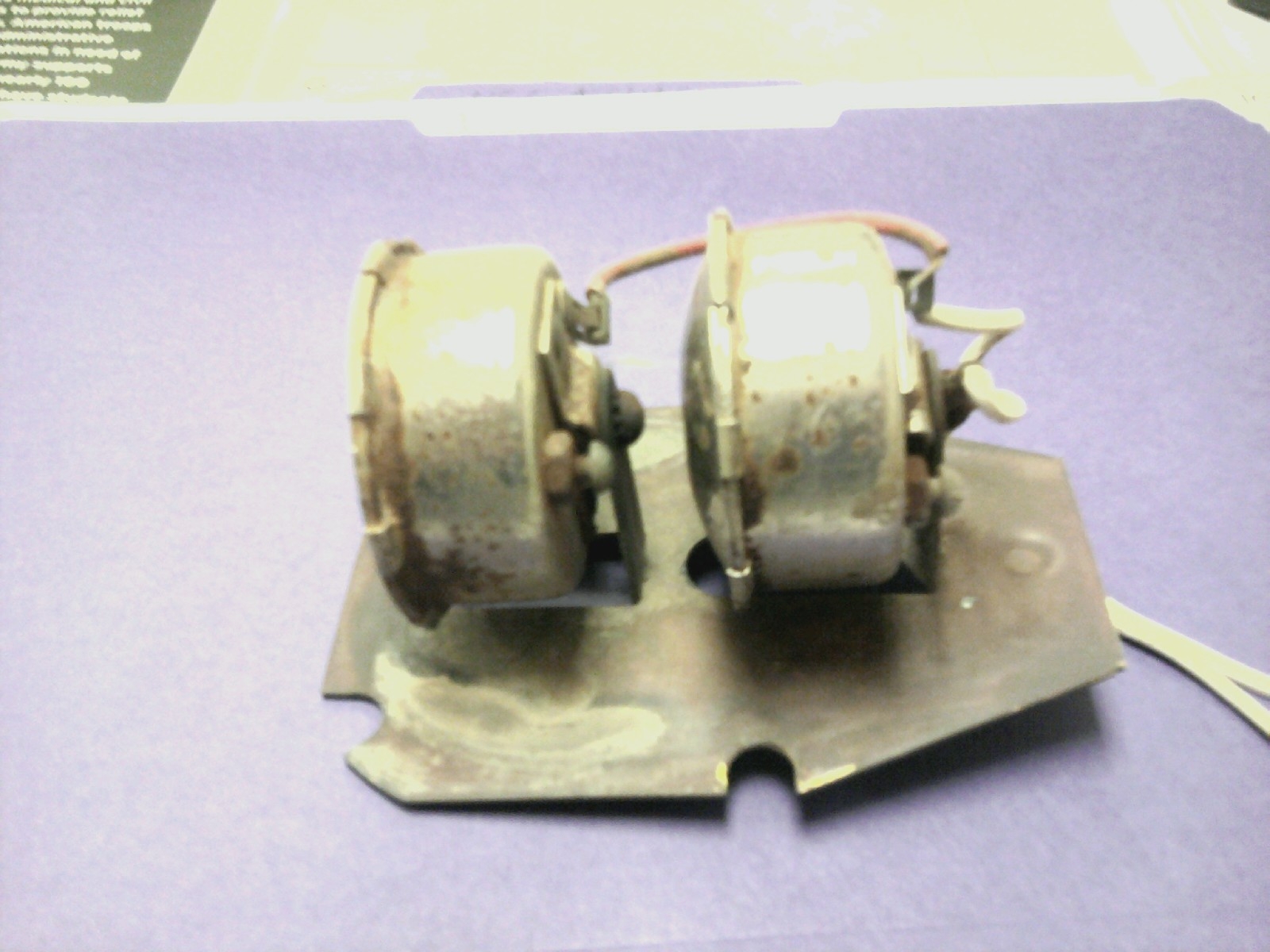

On the second pic, there are two screws with no wires going to them. what and where does this go? Also, on the case there was a spacer between the two post with a hole in the bottom.
|
|
|
Please Log in or Create an account to join the conversation. |
Re:wiring a horn 12 years 11 months ago #49225
|
The screw(s) with no wires are probably the "tuning adjustment" screws. Many of the older mechanical horns like this had and adjustment to make a minor "tweak" in the pitch of the horn. (Seems like tightening made it higher, loosening made it lower?)
The bracket and hole in the top look more like a flag staff mount? Don't think there would have been a trumpet mounted up there, but I'm just guessing, not sure at all.  |
|
|
Please Log in or Create an account to join the conversation.
Mark
|
Re:wiring a horn 12 years 11 months ago #49227
|
I don't know if this helps but it is a Delta Electric horn from Marion, Ind.
|
|
|
Please Log in or Create an account to join the conversation. |
Re:wiring a horn 12 years 11 months ago #49232
|
Very cool horn.Mark is correct that the screws with the lock nuts are to fine tune the sound.Same as auto horns. My guess for the bracket on top is that it may have been a mount for a spotlight.Test it as Frank describe and wire it in using the wiring diagram he also suppled and you should be good to go.
|
|
|
Please Log in or Create an account to join the conversation. |
Re:wiring a horn 12 years 11 months ago #49281
|
Yeah, the horns work. Very loud and obnoxious. I guess I'll have to try to find a spotlight to mount to the top of the casing. Any suggestions?
|
|
|
Please Log in or Create an account to join the conversation. |
Re:wiring a horn 12 years 11 months ago #49304
|
kewpie,
The suggestion of a spotlight being mounted there was simply a w.a.g.Hopefully someone who has been in this hobby,obsession longer than I can verify my wild a** guess. Melanie P.S. If you should happen to decide to sell that ugly obnoxious thing I am interested. |
|
|
Please Log in or Create an account to join the conversation. |
Re:wiring a horn 12 years 11 months ago #49305
|
I think I'll put a light there, a tractor light probably. Thanks for the help.
|
|
|
Please Log in or Create an account to join the conversation. |
Re:wiring a horn 12 years 11 months ago #49316
|
i'm curious why a horn is shaped like a bow light?
the terminal looking top? are there screws or anything on the underside to connect power to? to anyone who has maybe restored horns...my Tahiti had a horn mounted under the deck...I tried hooking to battery to check operability, no go... wondering i stripped back the old wire to new.. do horns go bad after sitting for year? |
|
|
Please Log in or Create an account to join the conversation.
Matt in Illinois
I ain't here for a long time, I'm here for a good time ! |
Re:wiring a horn 12 years 11 months ago #49317
|
check out auxilary motorbike lights for it....the`ll bolt right up to that bad boy lol only around 40-50 bucks n chrome
|
|
|
Please Log in or Create an account to join the conversation. |
Re:wiring a horn 12 years 11 months ago #49344
|
I know of a guy who had/has that exact horn on his Falls Flyer. It mounted about 5" behind the matching bow light. I've never seen another one until today. I've been hunting.
The horns inside look a lot like the ones Lionel used in post war diesel locomotives. Are they wired in series or parallel? 6 or 12 volt? I think his horn had a telescoping radio antenna on the top. Horns don't go bad, but the point contacts can corrode. I have cleaned up the electrodes inside horns and got them working again. |
|
|
Please Log in or Create an account to join the conversation. |
Re:wiring a horn 12 years 11 months ago #49374
|
No terminals underneath the casing to connect things to. Just has those terminal things on the top with a bushing that goes between the two. Didn't know I had a semi rare piece. Heck, I was going to junk it an put a new horn in, but since I was shown how to get the horns working, I'll keep it and mount a small spotlight/tractor light to the top.
|
|
|
Please Log in or Create an account to join the conversation. |
Re:wiring a horn 12 years 11 months ago #49378
|
kewpie,i have restored or customized alot of "air" horns,and have been doing so for a long time,your electric horn is the 1st one i have ever seen that looks like that,very nice,john
|
|
Please Log in or Create an account to join the conversation.
\"too soon old,too late smart\" my pap
Twenty years from now you will be more disappointed by the things that you didn’t do than by the ones you did do. So throw off the bowlines. Sail away from the safe harbor. Catch the trade winds in your sails. Explore. Dream. Discover.“ ---Mark Twain |
Re:wiring a horn 12 years 11 months ago #49380
|
kewpie79,
Would you mind posting a photo of the inside of the cover? Thanks, Todd |
|
|
Please Log in or Create an account to join the conversation. |
Re:wiring a horn 12 years 11 months ago #49382
|
jepstr67 I wouldn't be able to post that till Monday, the piece is at home and I use my work computer.
|
|
|
Please Log in or Create an account to join the conversation. |
Re:wiring a horn 12 years 11 months ago #49600
|

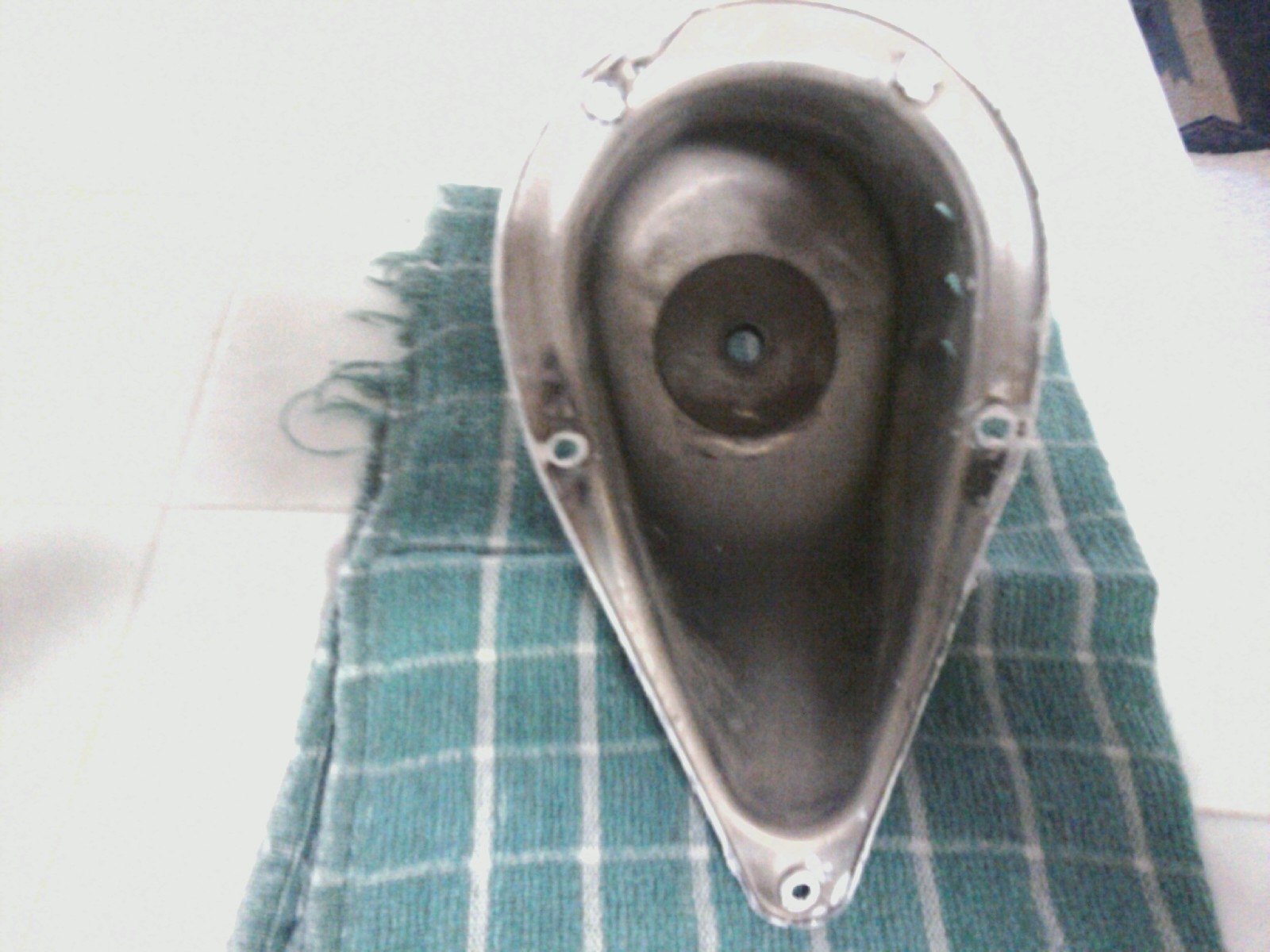

Here is the pic of the inside of the casing.
|
|
|
Please Log in or Create an account to join the conversation. |
