TOPIC: Dorsett Emblem help

Dorsett Emblem help 10 years 4 months ago #31726

Happy Mother's Day All!!

Would one of you Dorsett owners be so kind and condescending, stoop so low and be so bending, as to provide me with an up-close, straight-on and in-focus picture of the Dorsett disc emblem. I have the logo from the library, but I was hoping for an image w/ more quality.....And not to push my luck, but a measurement or two would be greatly appreciated.

email pics and info to:
povertyjet@yahoo.com

BTW, Did Raymond Loewy design these boats? The windows resemble a '50 Studebaker Starlight coupe that I once had.

your pal,
povertyjet

Please Log in or Create an account to join the conversation.

Re:Dorsett Emblem help 10 years 4 months ago #31734

  • Andgott
  • Andgott's Avatar
  • Offline
  • Contributing Member
  • Contributing Member
  • Posts: 1243
  • Karma: 72
  • Thank you received: 0
I've got that one in my "Arsenal"-



I've got it as a vector file, so it can be as big or small as needed. Also, any color.

-Andrew
Attachments:

Please Log in or Create an account to join the conversation.

Re:Dorsett Emblem help 10 years 4 months ago #31742

Andgott wrote:

I've got that one in my "Arsenal"-
I've got it as a vector file, so it can be as big or small as needed. Also, any color.
-Andrew


Wow, almost 50 views and not one Dorsett owner?

Thanks Andrew,
I am trying create a DWG file so I would need a WMF or DXF to import into ACAD. Do you know the size of the original?

thanks
Frank

Please Log in or Create an account to join the conversation.

Re:Dorsett Emblem help 10 years 4 months ago #31751

  • Andgott
  • Andgott's Avatar
  • Offline
  • Contributing Member
  • Contributing Member
  • Posts: 1243
  • Karma: 72
  • Thank you received: 0
The illustrator file is 1.5mb

I can also save it in a few other formats, the 'normal' .JPG, .GIF, and several vector formats, (EPS, SVG), as well as PDF. I'm not familiar with ACAD, so I don't know what you can import directly...

Please Log in or Create an account to join the conversation.

Re:Dorsett Emblem help 10 years 4 months ago #31762

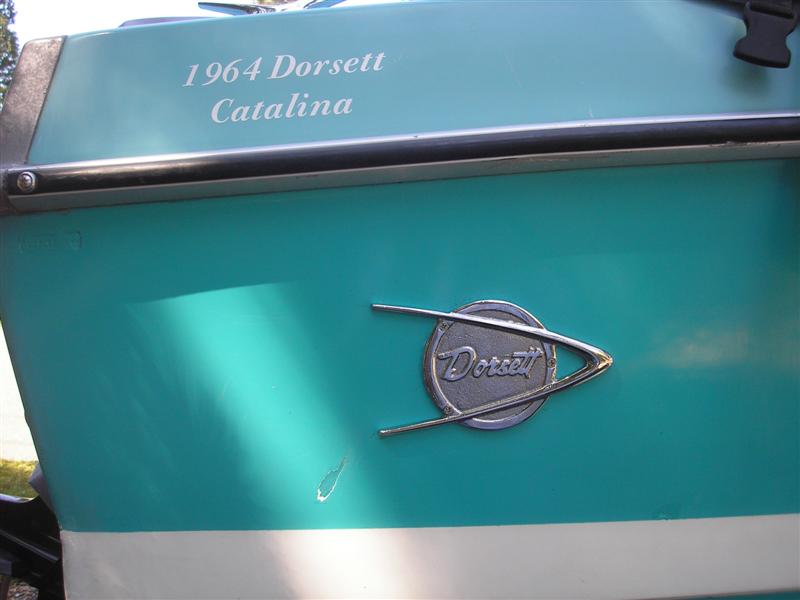

Povertyjet, here's what I've got. Unfortunately, both my eblems had the tips broken off but maybe this pic will help. The inner circle is 4" across and the entire width with tips is 7". Hope it helps.

Please Log in or Create an account to join the conversation.

Re:Dorsett Emblem help 10 years 4 months ago #31764

What are some of the programs that will give you the vector art? I had this come up for something else and I never got a good answer.

Please Log in or Create an account to join the conversation.

Re:Dorsett Emblem help 10 years 4 months ago #31788

  • Andgott
  • Andgott's Avatar
  • Offline
  • Contributing Member
  • Contributing Member
  • Posts: 1243
  • Karma: 72
  • Thank you received: 0
Illustrator is the primary one, and most common in the graphics world.

There are a LOT of others, though, including some free ones-

en.wikipedia.org/wiki/List_of_vector_graphics_editors

Please Log in or Create an account to join the conversation.

Re:Dorsett Emblem help 10 years 4 months ago #31794

  • bhamrick
  • bhamrick's Avatar
  • Offline
  • Contributing Member
  • Contributing Member
  • Posts: 224
  • Karma: 31
  • Thank you received: 0

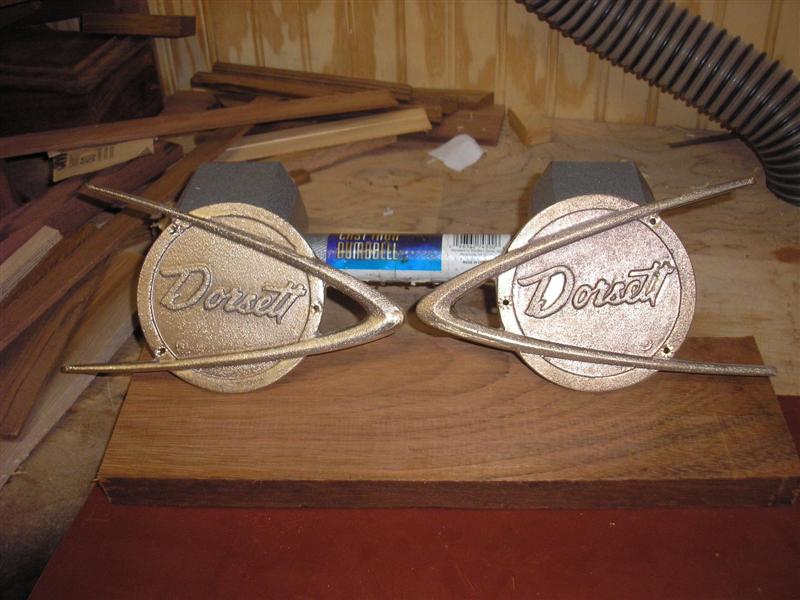

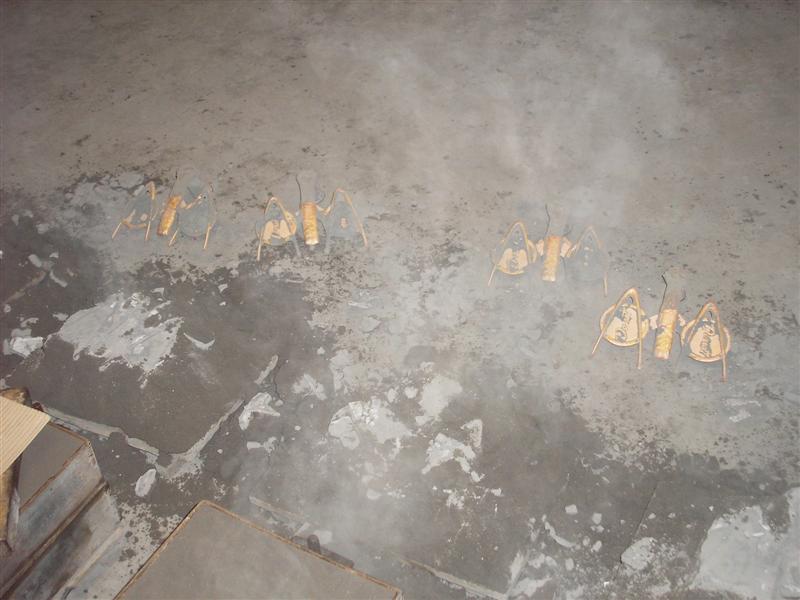

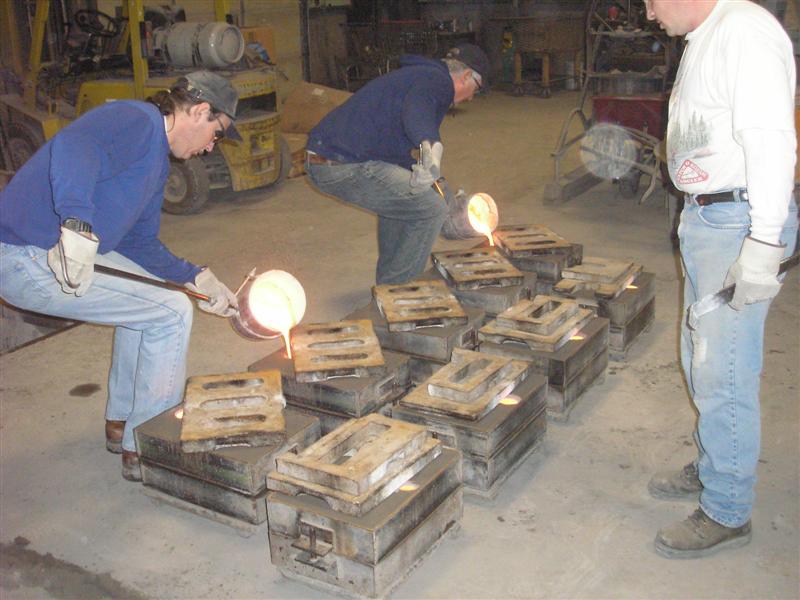

What is it you are trying to do ? Are you trying to cast some emblems or just re-produce the logo for decals or hats Etc ? These were cast in Silicon Bronze then chrome plated They are sand cast so there is alot of finish work before you can plate

Emblems are 7" from point of the < to the end and the circle is 4"
Attachments:

Please Log in or Create an account to join the conversation.

Re:Dorsett Emblem help 10 years 4 months ago #31806

Yes, Raymond Lowey was involved with styling and design of the Dorsett boat line. Says so right in the front of some of their brochures.

Andreas

Please Log in or Create an account to join the conversation.

Re:Dorsett Emblem help 10 years 1 month ago #38689

Hi: Looking for this logo in vector format for a friend's 1965 Dorsett. Is this still available? Thanks, Rick

Please Log in or Create an account to join the conversation.

Re:Dorsett Emblem help 1 month 3 weeks ago #145101

bhamrick, is there a way of getting some cast emblems? Do you know who might produce these?

Please Log in or Create an account to join the conversation.
