TOPIC: Look for a wiring diagram for a 1959, 40HP Scott

Look for a wiring diagram for a 1959, 40HP Scott 10 years 10 months ago #88894

gdanderson
Topic Author
Offline
Contributing Member
Posts: 155
Karma: 33
Thank you received: 0

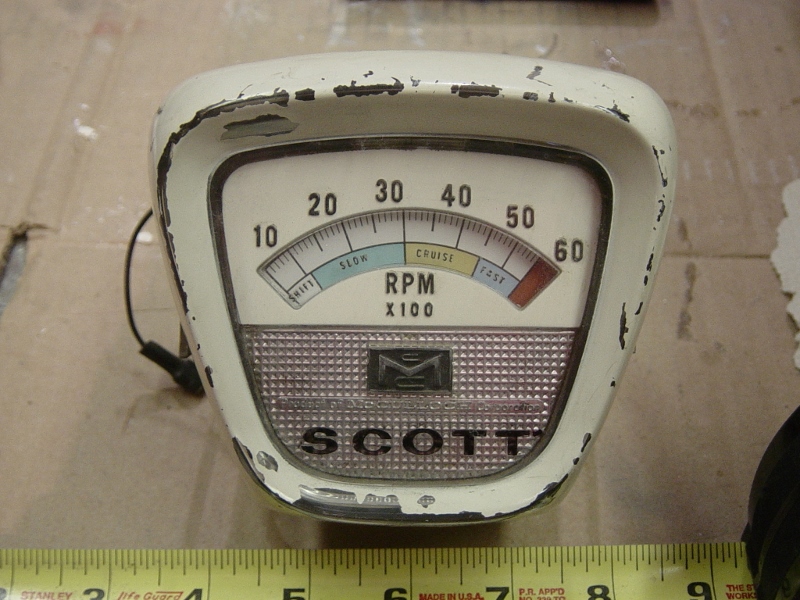

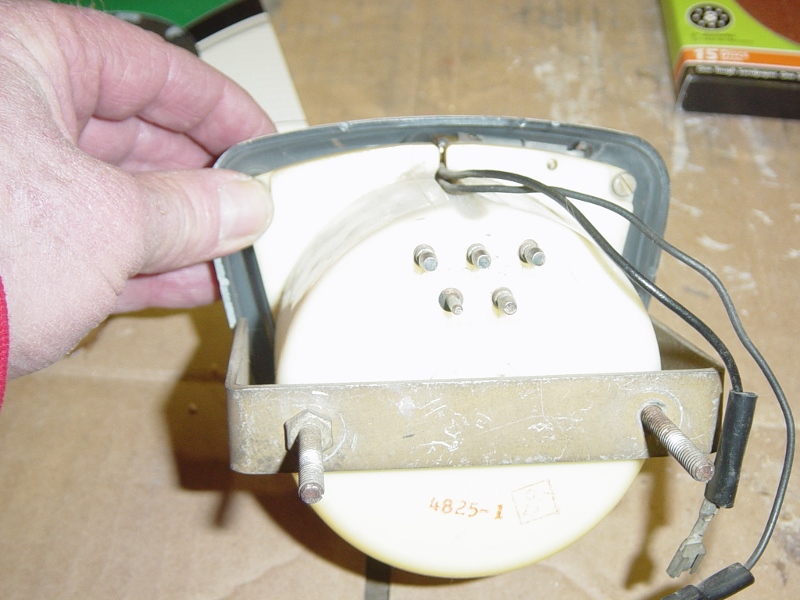

Picked up a tachometer for my Cadillac Constellation with a 40 HP Scott/McCulloch. I am in need of a wiring diagram for a 40HP Scott motor with electric start and generator that shows the tach. wiring hookup. The motor (serial #336 6154) is a two cylinder without a junction box. The 60HP Scott motor had a junction box and I have that diagram. Note the back of the tach has pins for five wires, Brown, Pink, Orange, Black, Blue.

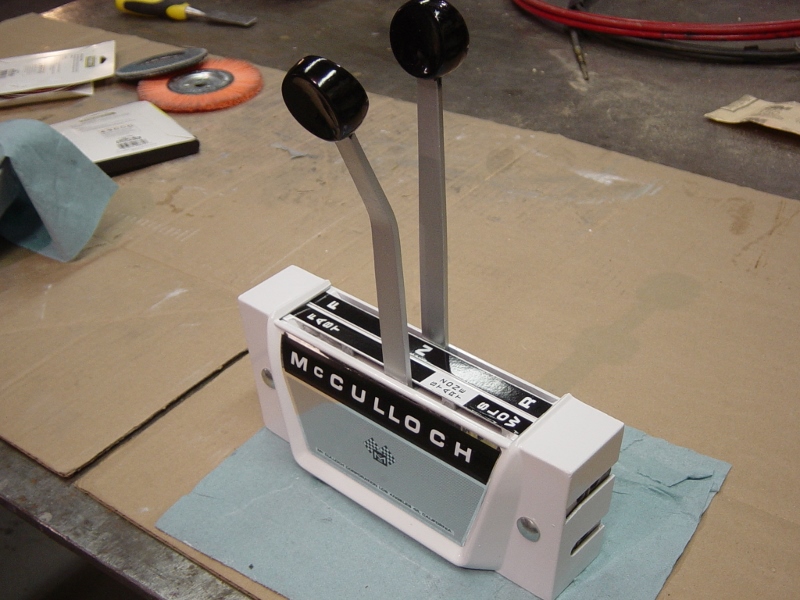

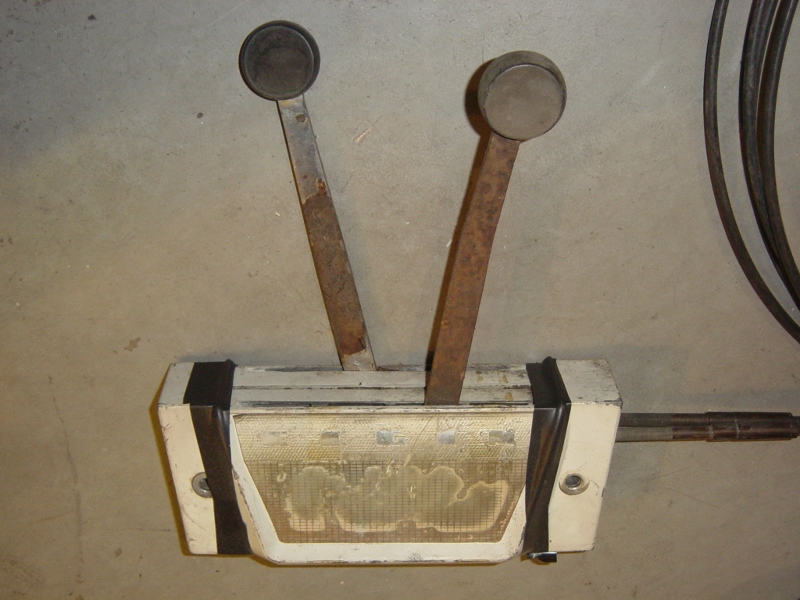

Last two photo's are before and after of my reconditioned motor control.

If anyone would have a Scott speedometer I sure would be interested.

Greg Anderson
Wisconsin

Attachments:

Please Log in or Create an account to join the conversation.

Re:Look for a wiring diagram for a 1959, 40HP Scott 10 years 10 months ago #88930

Flying Fish
Offline
Senior Boarder
Posts: 187
Karma: 52
Thank you received: 12

Greg,
I have a 1960 Factory Service manual and it has the 60 hp wiring diagram with tach and relay box, and the 40 hp wiring diagram with tach but without the relay box.
Two problems. First,I recently networked my printer to the house and shop computers and the scan function has been in-op ever since. If you can send or phone me your address I can copy the 40 hp and send it to you.
The second is that there appears to be a mistake on the tach wiring for the 40 hp. I went over both the 60 and 40 diagrams to see what was different and I noticed the blue ground wire circuit is not complete.
I worked as a factory service engineer for forty years, using wiring diagrams daily, and it is not uncommon to see these types of mistakes.
The two models are wired basically the same, except in the 60 all the tach wires go into the relay box and two of them, black (power) and blue (ground)terminate at ground and power terminals at the regulator. The 40 tach wiring all goes to the power head and the black goes to the terminal strip. The blue also goes to the terminal strip, but it also grounds the key switch panel. So there is a blue wire from the tach, there is one from the switch panel, and there is one from the terminal strip, but there is no junction shown tying the three blue wires together.
If no one can get one to you electronically let me know and I'll send you one.

Don
