1960 Gale 35 hp wires 11 years 11 months ago #77221

curse
Topic Author
Offline
Contributing Member
Posts: 445
Karma: 5
Thank you received: 2

I'm working on my 1960 Gale 35 hp and have some wiring questions

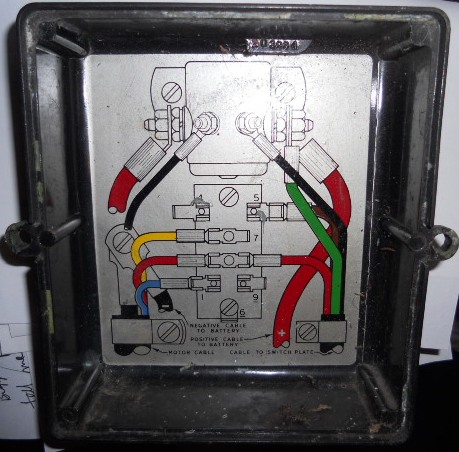

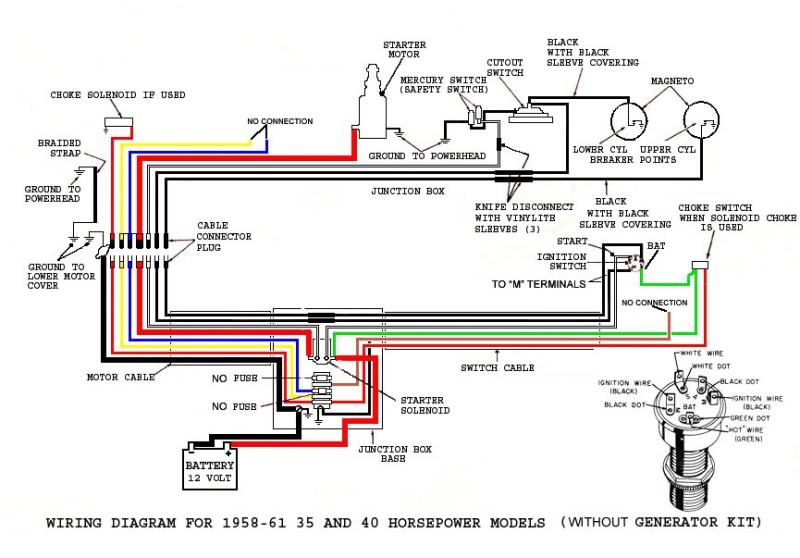

1. My black wire that goes to the small terminals on solenoid are the white wires pictured in the diagram correct?

2. this motor does not have a magneto, do i still need 2 black wires going to the "m" terminals of the switch as shown in diagram?

Attachments:

Please Log in or Create an account to join the conversation.

1960 slickcraft catalina
1963 g-w invader ski-bird
1972 g-w invader drag & ski 14
Portage Michigan

Re:1960 Gale 35 hp wires 11 years 11 months ago #77222

curse Topic Author Offline Contributing Member Posts: 445 Karma: 5 Thank you received: 2	diagram Attachments: Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation. 1960 slickcraft catalina 1963 g-w invader ski-bird 1972 g-w invader drag & ski 14 Portage Michigan

Re:1960 Gale 35 hp wires 11 years 11 months ago #77223

curse Topic Author Offline Contributing Member Posts: 445 Karma: 5 Thank you received: 2	Attachments: Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation. 1960 slickcraft catalina 1963 g-w invader ski-bird 1972 g-w invader drag & ski 14 Portage Michigan

Re:1960 Gale 35 hp wires 11 years 11 months ago #77239

professor Offline Gold Boarder Posts: 758 Karma: 87 Thank you received: 1	It does have a " magneto " and it is under the flywheel. Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation.

Re:1960 Gale 35 hp wires 11 years 11 months ago #77257

curse Topic Author Offline Contributing Member Posts: 445 Karma: 5 Thank you received: 2	I meant it doesn't have an external magneto that i'm familiar with. So i assume the under the flywheel magneto needs wired to the "m" terminals on ignition switch? Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
