TOPIC: fat50 pic of choke

fat50 pic of choke 12 years 5 months ago #63621

  • curse
  • curse's Avatar Topic Author
  • Offline
  • Contributing Member
  • Contributing Member
  • Posts: 445
  • Karma: 5
  • Thank you received: 2
Can someone please post a pic of the electric choke linkage on a 58 evinrude starflite 50?
My linkage is missing and pics in repair manual are not good at all. Thanks!

Please Log in or Create an account to join the conversation.

1960 slickcraft catalina
1963 g-w invader ski-bird
1972 g-w invader drag & ski 14
Portage Michigan

Re:fat50 pic of choke 12 years 5 months ago #63623

Curse, try the link below. It's to my fat fifty hot rodding thread and I have a few pics there that may help.
www.fiberglassics.com/glassic-forums/18-jegos-place/48438-hot-rodding-a-fat-fifty-a-lesson.html

Bob

Please Log in or Create an account to join the conversation.

Re:fat50 pic of choke 12 years 5 months ago #63666

  • curse
  • curse's Avatar Topic Author
  • Offline
  • Contributing Member
  • Contributing Member
  • Posts: 445
  • Karma: 5
  • Thank you received: 2
I didn't see a good enough pic to see the setup, is it just springs for the linkage or solid rods? My choke plunger moves down but other linkage is not attached so it does not operate the butterfly.

The link you posted has been bookmarked for later reading, nice write-up!

Please Log in or Create an account to join the conversation.

1960 slickcraft catalina
1963 g-w invader ski-bird
1972 g-w invader drag & ski 14
Portage Michigan

Re:fat50 pic of choke 12 years 5 months ago #63668

Yes there should be a solid rod coming out of the the solenoid. I'll try and take a pic of it tomorrow since the boat is in the shed.

Bob

Please Log in or Create an account to join the conversation.

Re:fat50 pic of choke 12 years 5 months ago #63709

Curse,

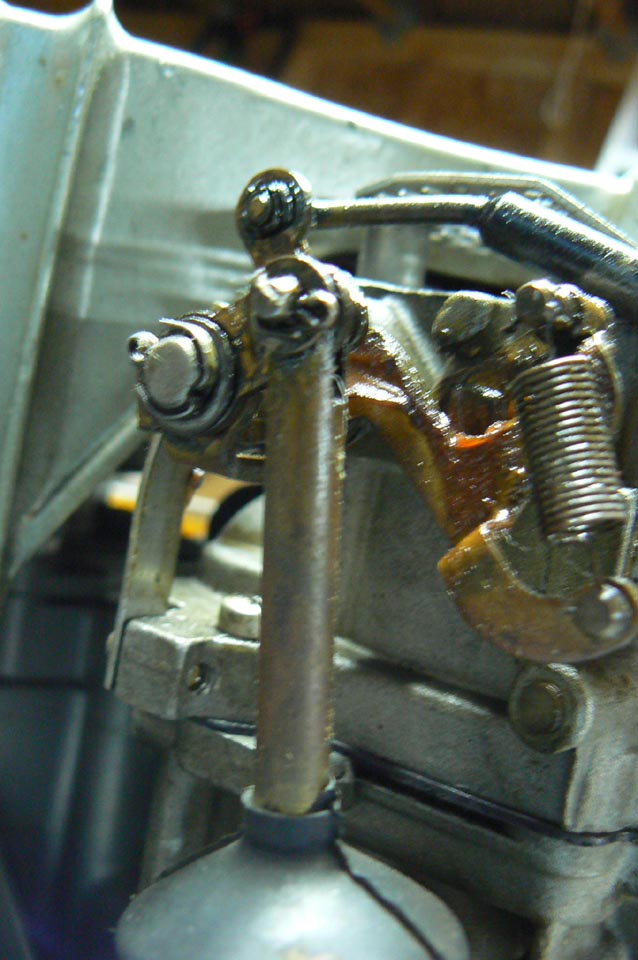

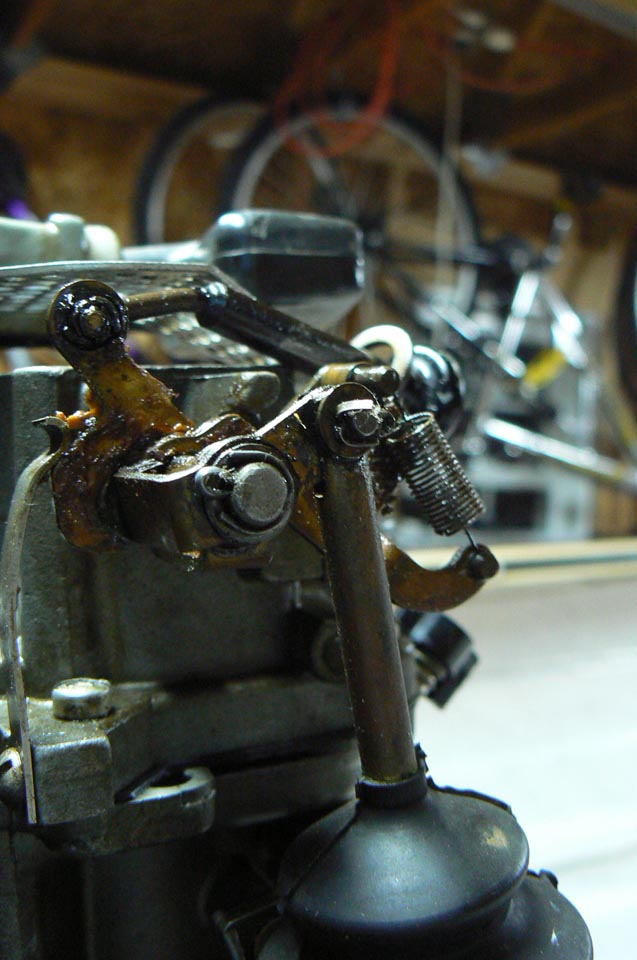

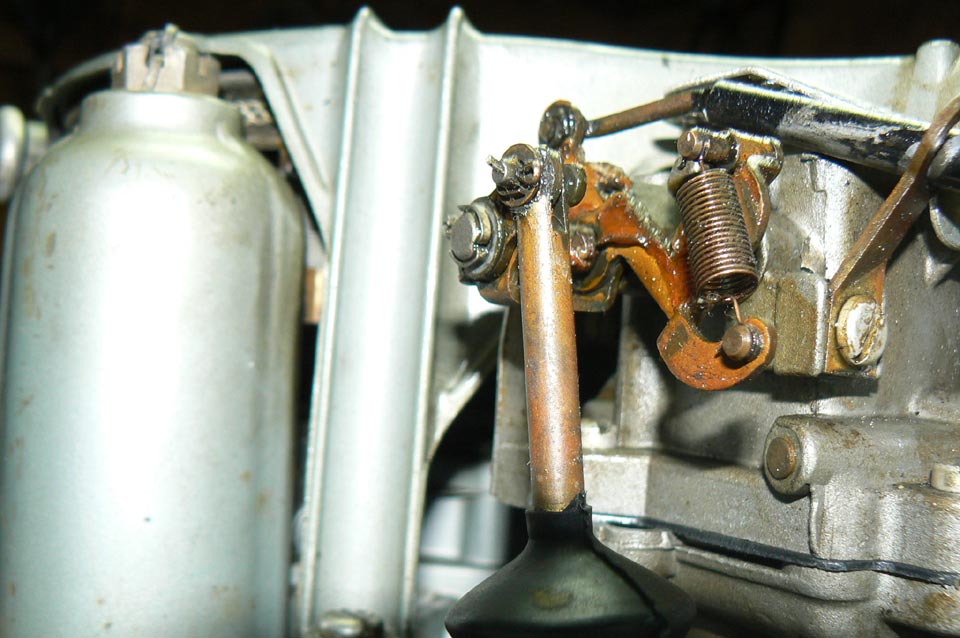

Here are the pics as promised.




Hope that helps. That's the best I could do since the boats up on blocks in the shed and I'm a little vertically challenged (5'7") so I had to shoot without really looking when taking the one from the front.

Bob
Attachments:

Please Log in or Create an account to join the conversation.

Re:fat50 pic of choke 12 years 5 months ago #63731

  • curse
  • curse's Avatar Topic Author
  • Offline
  • Contributing Member
  • Contributing Member
  • Posts: 445
  • Karma: 5
  • Thank you received: 2
Thanks Bob!

Looks like i'm missing the manual choke pull and it is a spring that operates the butterfly.


Please Log in or Create an account to join the conversation.

1960 slickcraft catalina
1963 g-w invader ski-bird
1972 g-w invader drag & ski 14
Portage Michigan

Re:fat50 pic of choke 12 years 5 months ago #63738

  • riceman
  • riceman's Avatar
  • Offline
  • Contributing Member
  • Contributing Member
  • Posts: 397
  • Karma: 12
  • Thank you received: 0
curse -

if you're in need of the parts, i've got a full powerhead with carbs and all just sitting out in the garage. i could pull whatever you need off of it.

-Chris

Please Log in or Create an account to join the conversation.

Re:fat50 pic of choke 12 years 5 months ago #63743

  • curse
  • curse's Avatar Topic Author
  • Offline
  • Contributing Member
  • Contributing Member
  • Posts: 445
  • Karma: 5
  • Thank you received: 2
That would be great! Do you need any info or do the pictures tell you what i need?

Please Log in or Create an account to join the conversation.

1960 slickcraft catalina
1963 g-w invader ski-bird
1972 g-w invader drag & ski 14
Portage Michigan

Re:fat50 pic of choke 12 years 5 months ago #63781

  • riceman
  • riceman's Avatar
  • Offline
  • Contributing Member
  • Contributing Member
  • Posts: 397
  • Karma: 12
  • Thank you received: 0
the pics should be sufficient. i'll get the parts off of the motor and take a pic of what i'll be sending to make sure all is present and accounted for. i'll message you about it once i get home.

-Chris

Please Log in or Create an account to join the conversation.

Re:fat50 pic of choke 12 years 5 months ago #63984

  • riceman
  • riceman's Avatar
  • Offline
  • Contributing Member
  • Contributing Member
  • Posts: 397
  • Karma: 12
  • Thank you received: 0

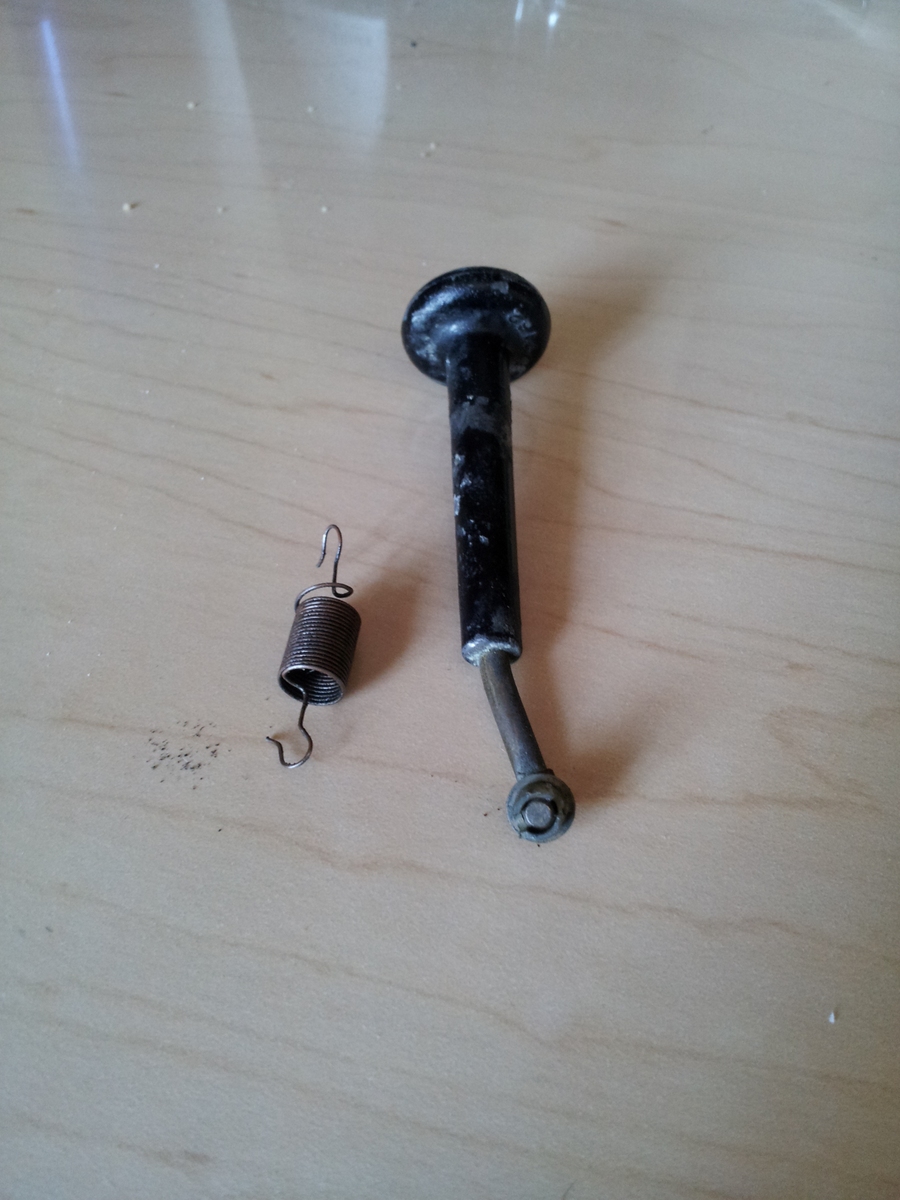

here's what i've got set aside. there's also a rubber grommet that goes in the hole in the bracket where the choke pull goes through. it is to keep the handle from banging against the bracket. i see in your pic that you don't have it, and neither did Waterwings' pic. i tried to pull mine out to send along as well, but it was so dry rotted that it fell to pieces. there's nothing special about it really, and i'd imagine that you could find one at a hardware store. You'll also need a small cotter pin to hold the handle in. Mine broke when i removed it.

i posted here when i remembered that i can't send pics over PM. send me a message if you still need the parts.

Thanks
Chris
Attachments:

Please Log in or Create an account to join the conversation.
