TOPIC: Wiring diagram 1957 35 Lark

Wiring diagram 1957 35 Lark 14 years 9 months ago #2786

Hello to all
I am installing my 57 Lark big twin on my Akansas Traveler
this week and need to review the wiring to the control box
and the cable that plugs into the motor. The serial #25532
is on the transome bracket if that is any help. It does have
electric start and a generator. Thanks for any help and will
post pics as soon as I move the rig outside.
thanks again, Jack in AZ
The picture is San Carlos Lake last weekend. 8 crappies,
4 were over 2 lbs. 60 boats out there this weekend.

Please Log in or Create an account to join the conversation.

Re:Wiring diagram 1957 35 Lark 14 years 9 months ago #2787

sorry, that did'nt work.

Please Log in or Create an account to join the conversation.

Re:Wiring diagram 1957 35 Lark 14 years 9 months ago #2828

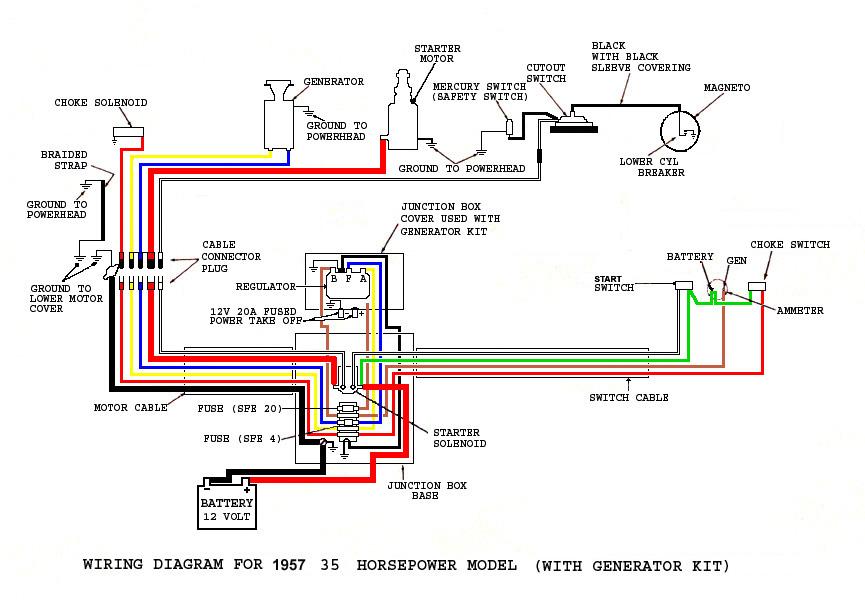

Here's the diagram for 1957.
Attachments:

Please Log in or Create an account to join the conversation.

Re:Wiring diagram 1957 35 Lark 14 years 9 months ago #2833

Thanks to you HandyAndy,I'm sure glad you had that diagram.
I had the green wire going to the choke and the red wire
as the 12 volt sorce to the key switch.That might have been
a really big boo boo.Thanks again ,Jack ,almost at the lake.

Please Log in or Create an account to join the conversation.

Re:Wiring diagram 1957 35 Lark 14 years 9 months ago #2836

I'm not sure about the relevancy of the colors of this diagram, this was supplied by someone else. I do have two '57 Larks and a '57 Big Twin, but haven't looked at the wiring set-up myself.

Please Log in or Create an account to join the conversation.

Re:Wiring diagram 1957 35 Lark 14 years 9 months ago #2993

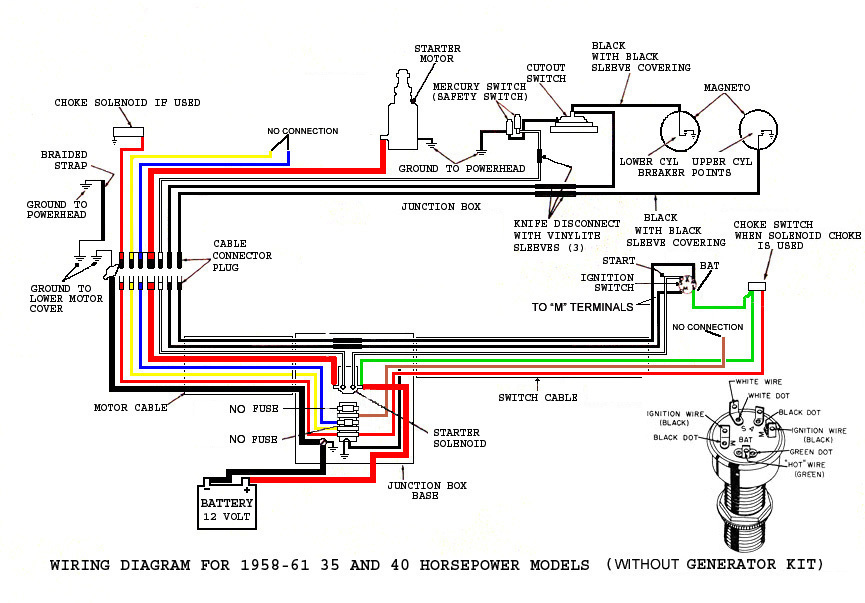

Heres another wiring digram
Mike aka pathfinderz1
Attachments:

Please Log in or Create an account to join the conversation.
