Homelite power tilt

Homelite power tilt 13 years 3 months ago #23382

Tom from Rubicon
Offline
Fresh Boarder
Posts: 30
Karma: 1
Thank you received: 1

Hi all,
First time poster on Fiberglassics. I haven't quite got the hang of this web site yet so please bear with me.
(The Story)

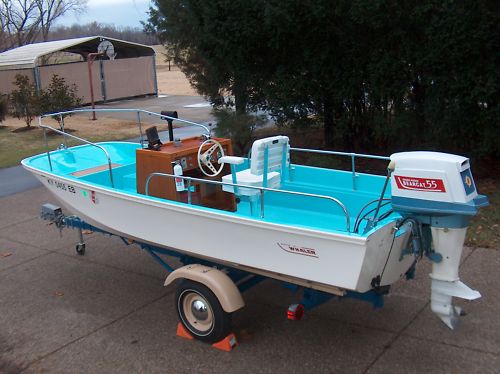

In 2004 I bought a 72 Bearcat from a gentleman in Minnesota.
In my correspondence with him, mention was made that the engine came with power tilt that was original equipment. The main castings have Homelite markings. Any forum members have any info? I bought a Homelite tach this last summer and the gentleman I bought it from said he also had an instruction sheet for the Homelite P/T with Fisher Pierce letter head he was going to send me also. Never happened. If any of you forum members know a thing or two about this power tilt unit I would very much appreciate hearing from you.
Also is there any collector value? I don't need it as my 66 Homelite
is mounted to my Boston Whaler via a Chrysler power TnT.
Thanks,
Tom from Rubicon,WI

Please Log in or Create an account to join the conversation.

Re:Homelite power tilt 13 years 2 months ago #23396

gdanderson Offline Contributing Member Posts: 155 Karma: 33 Thank you received: 0	Tim: Could you post a few photos of your power tilt unit. I have never seen one in person. How much would you think it weighs? I would like to put one on a boat that I have but am already near the max weight on the rear of this boat. Greg Anderson Monona, WI Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation.

Re:Homelite power tilt 13 years 2 months ago #23416

billr Offline Moderator Posts: 621 Karma: 51 Thank you received: 0	I have a factory tilt unit, and I think the paperwork too. Pop me an email to remind me and this weekend I'll dig it out and get pics. Bear in mind these are tilt, not trim and tilt. I have used Panther and CMC for tilt/trim several times. Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation. BillR FG member/advertiser since 1998 www.bearcat55.com www.homelite55.com www.robertsmaritimesystems.com

Re:Homelite power tilt 13 years 2 months ago #24069

billr Offline Moderator Posts: 621 Karma: 51 Thank you received: 0	SORRY so late with the pics folks........ here's factory bearcat tilt installed, i have one of these promised to a fellow member. these are really rare, I've been doing homelite and bearcat stuff for 14 years and have only ever seen 3 of these. Attachments: Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation. BillR FG member/advertiser since 1998 www.bearcat55.com www.homelite55.com www.robertsmaritimesystems.com

Re:Homelite power tilt 13 years 2 months ago #24070

Neil Offline Platinum Boarder Posts: 1997 Karma: 65 Thank you received: 1	Bill That looks like a very clean, neat, very well laid out job. Well done. Neil Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation. Neil and Mary Ousnamer

Re:Homelite power tilt 13 years 2 months ago #24075

59thunderhawk Offline Fresh Boarder Posts: 44 Thank you received: 0	bill do you have anymore tilt cylinders how much for two motors worth thanks Don Tierney Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation.

Re:Homelite power tilt 13 years 2 months ago #24083

Tom from Rubicon Offline Fresh Boarder Posts: 30 Karma: 1 Thank you received: 1	The Homelite tilt I have is totally different than the one that was for sale on Ebay that Bill posted. I'll have to take some photos and email them to Bill to post here. Tom Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation.

Re:Homelite power tilt 13 years 2 months ago #24116

elgindave
Offline
Contributing Member
Posts: 683
Karma: 10
Thank you received: 0

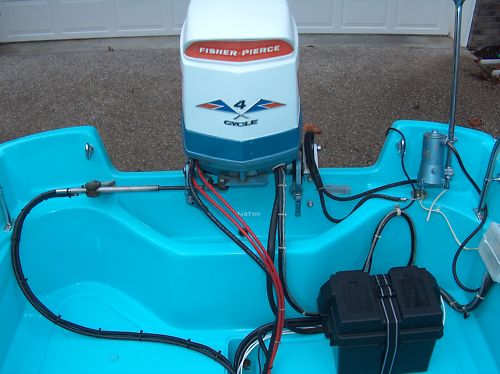

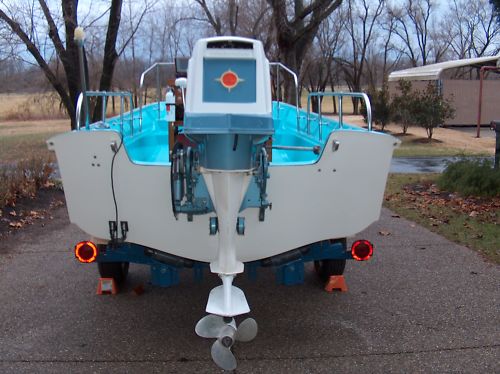

Notice it is on a Bostom Whaler. If I ever get one I would have to use an after market one. CMC. It would offset my motor to give it more clearence which I need. As of now I can't raise my Homelite all the way up in the locking position because the hood will hit the back railing on my pontoon.

I can tilt enough for trailering.

Attachments:

Please Log in or Create an account to join the conversation.

Re:Homelite power tilt 13 years 2 months ago #24155

billr Offline Moderator Posts: 621 Karma: 51 Thank you received: 0	Don, I only have one complete unit and it's promised to someone already. You can use a CMC or a Panther. I will check my other computer in a few minutes and post pics of the tilt trim I've adapted using either Panther or CMC units. Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation. BillR FG member/advertiser since 1998 www.bearcat55.com www.homelite55.com www.robertsmaritimesystems.com

Re:Homelite power tilt, Pics from Tom 13 years 2 months ago #24186

billr
Offline
Moderator
Posts: 621
Karma: 51
Thank you received: 0

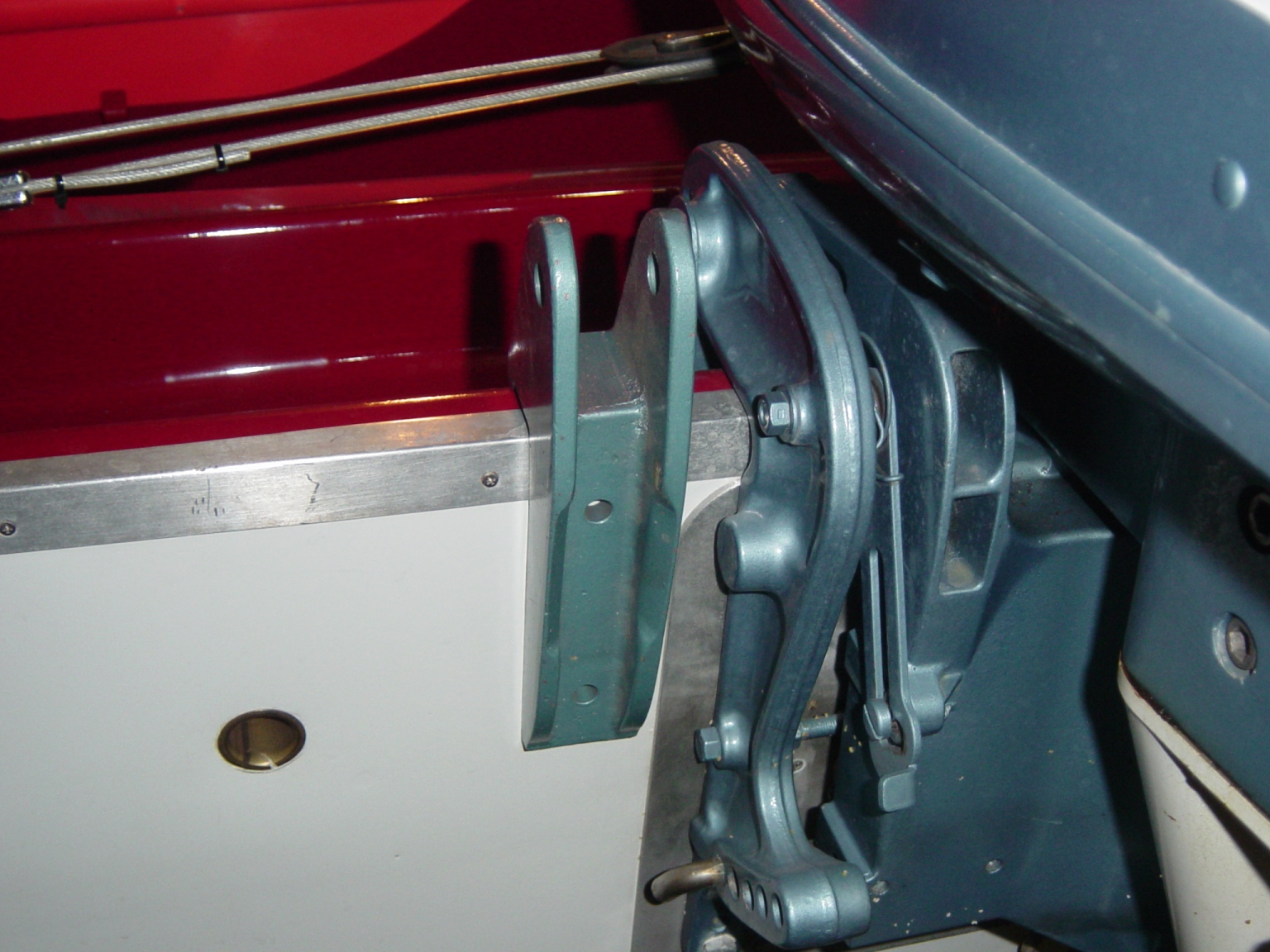

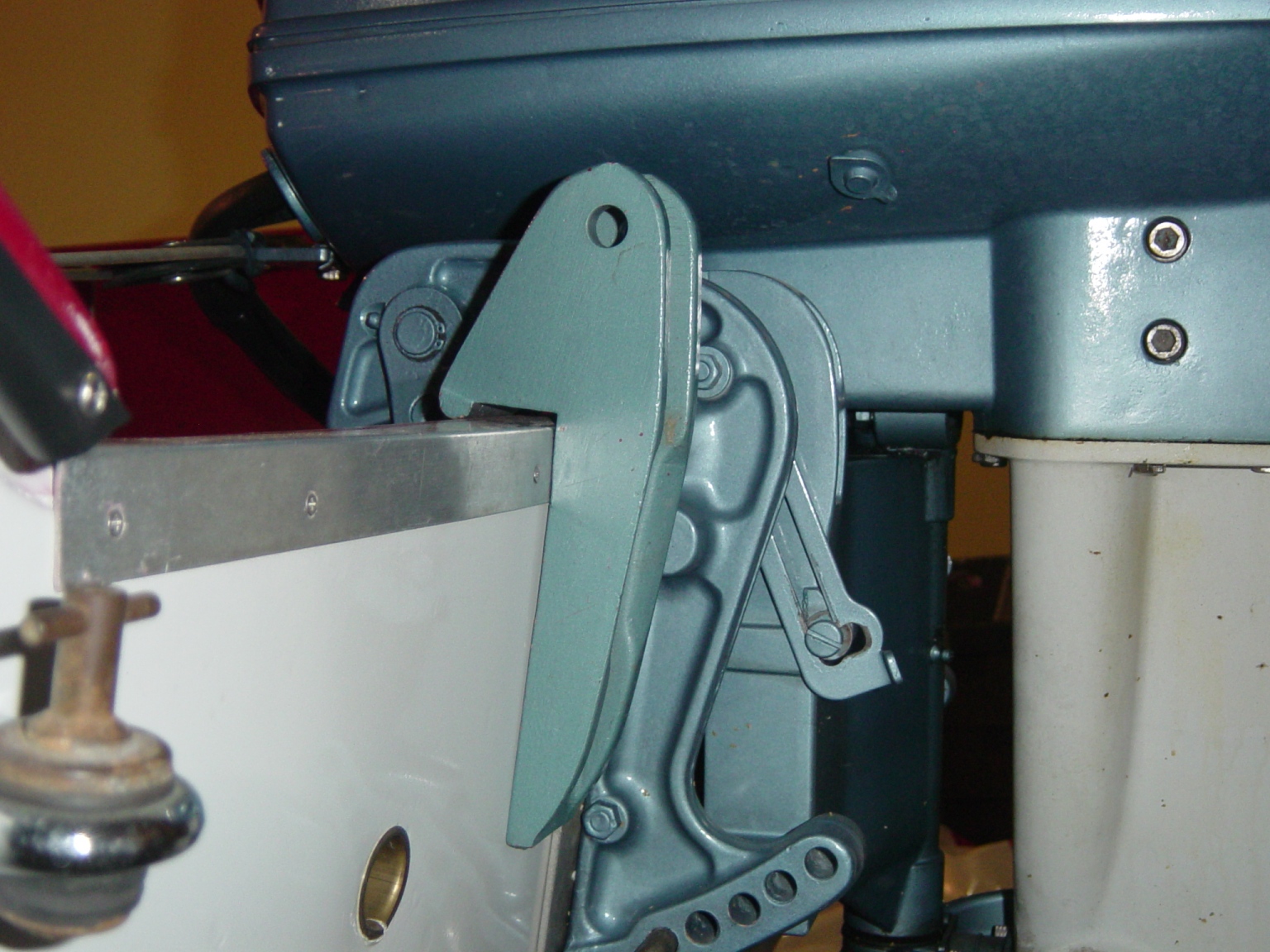

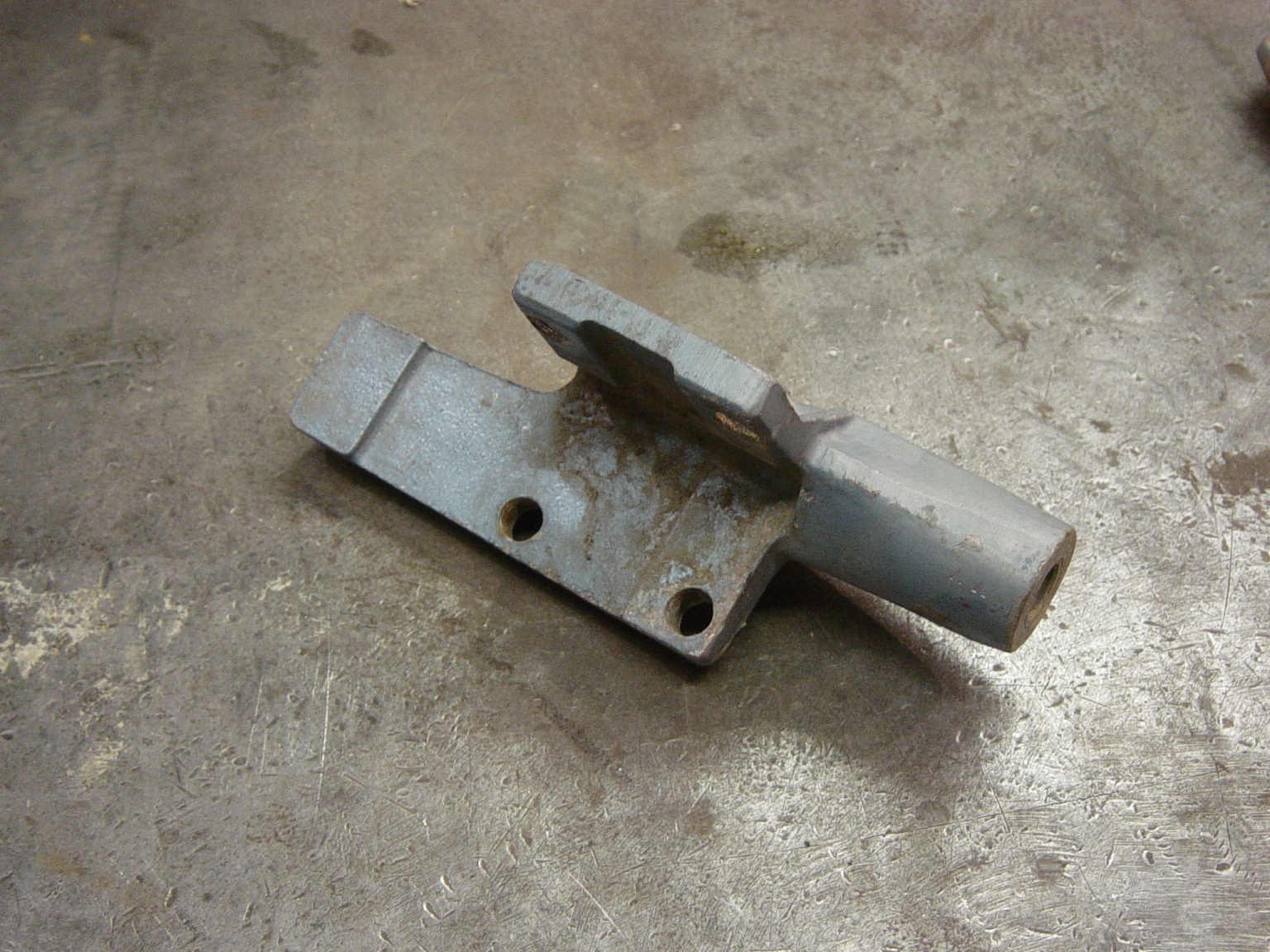

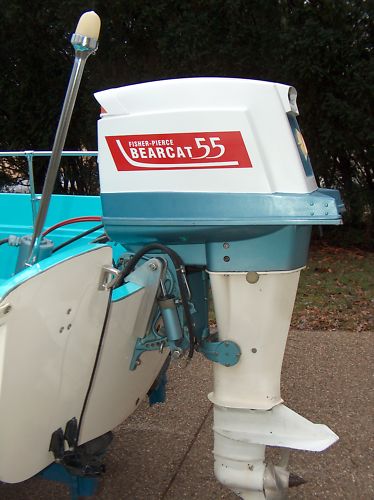

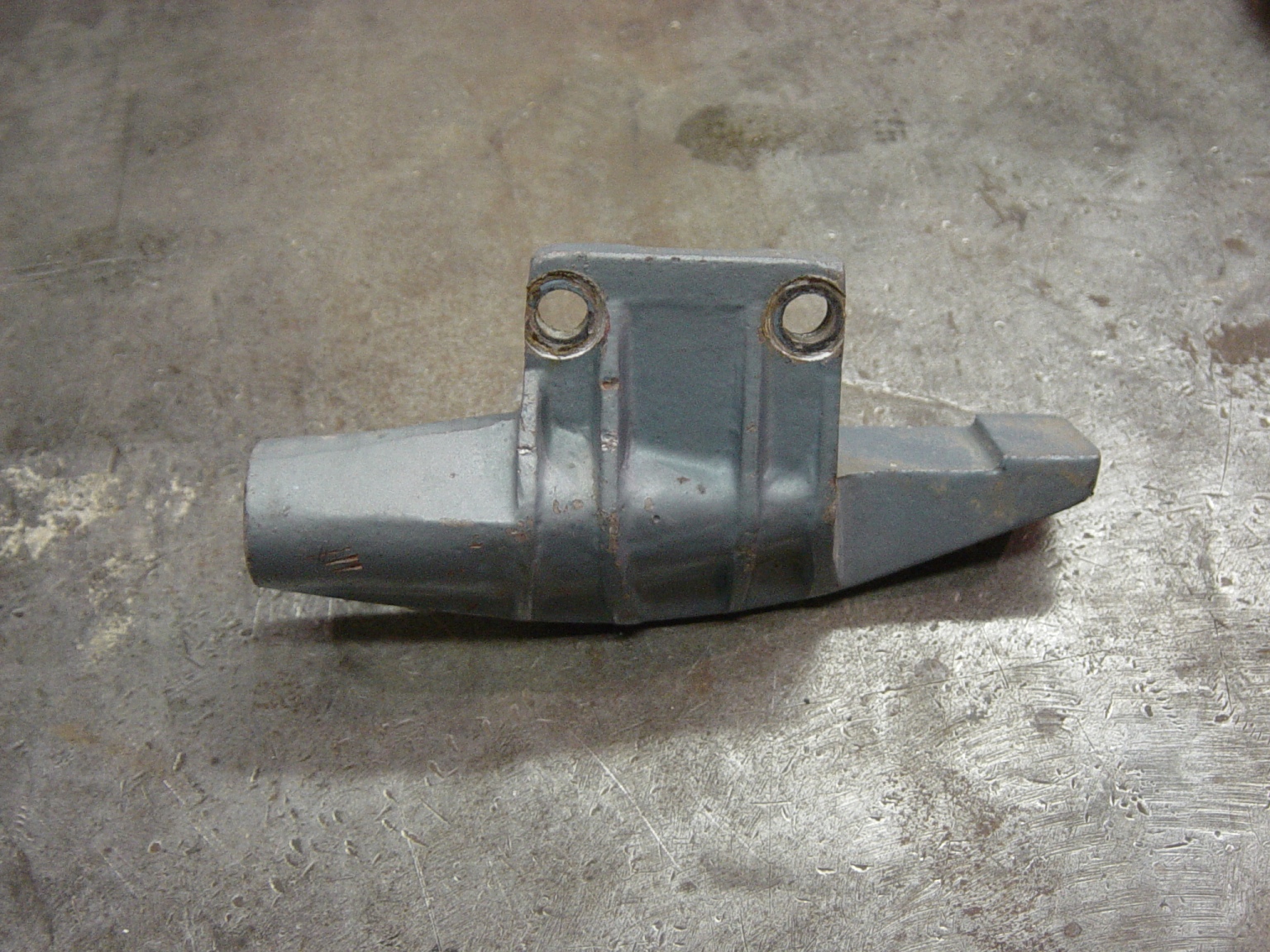

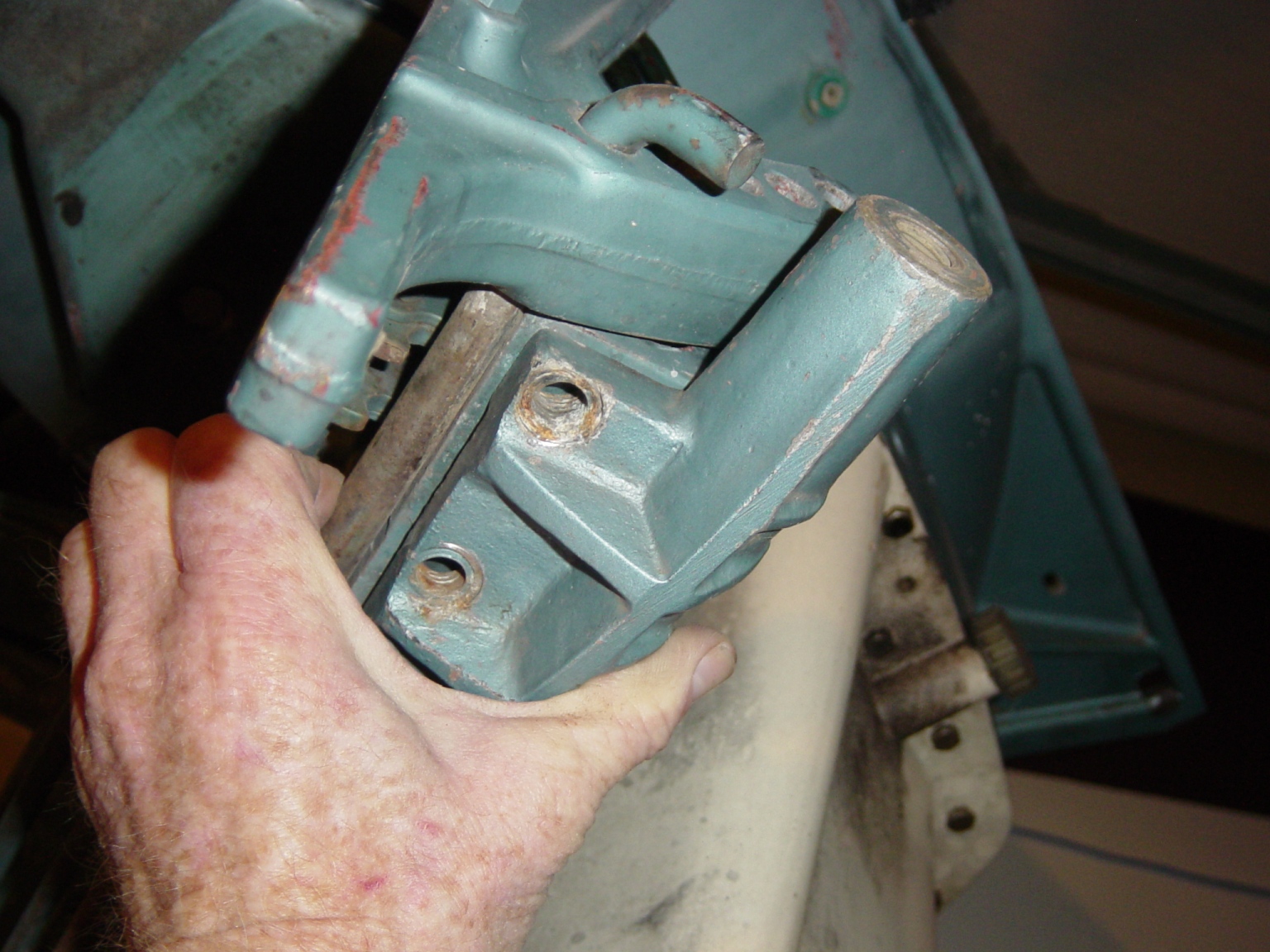

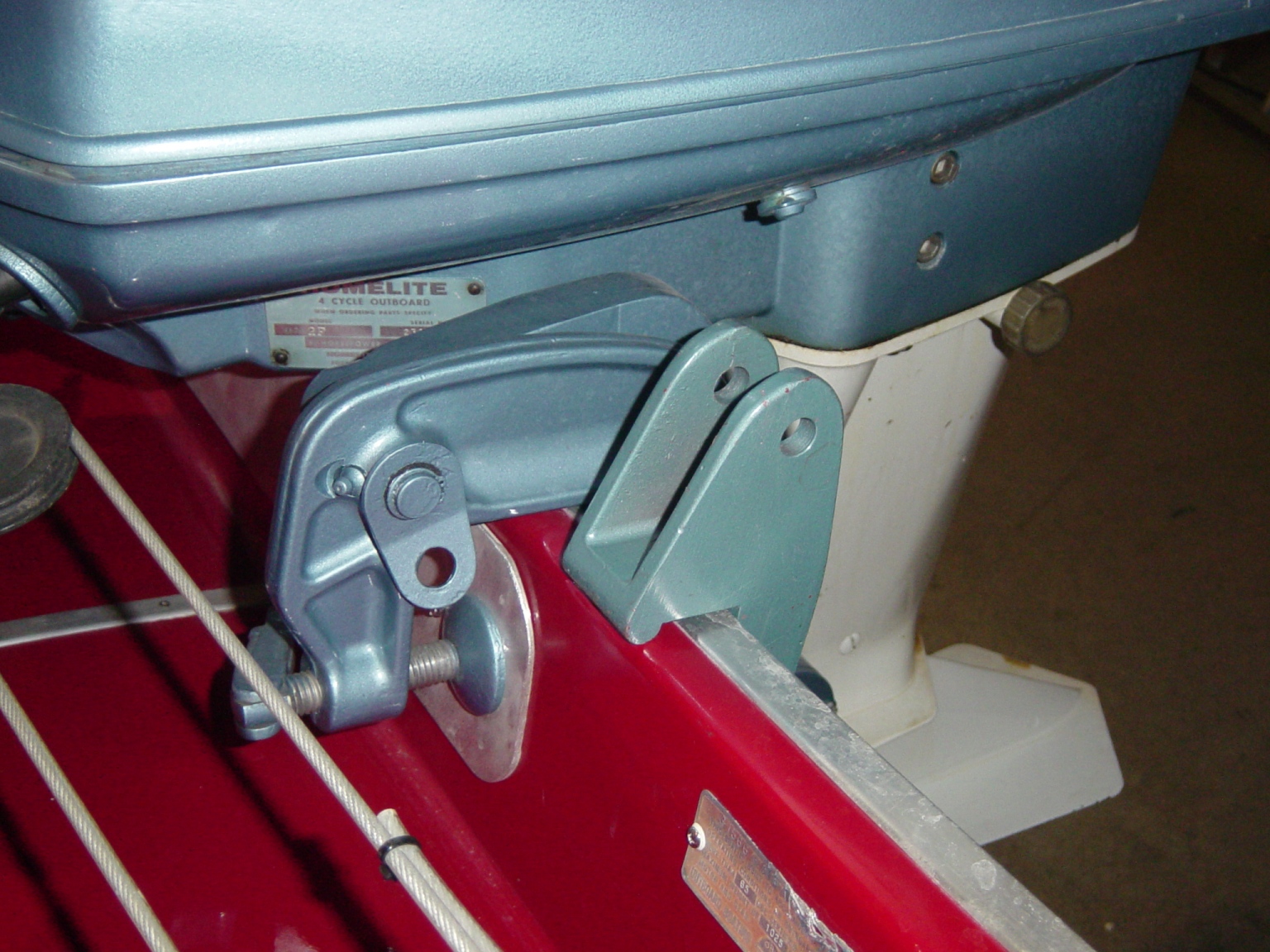

Tom forwarded me pics to post for everyone.

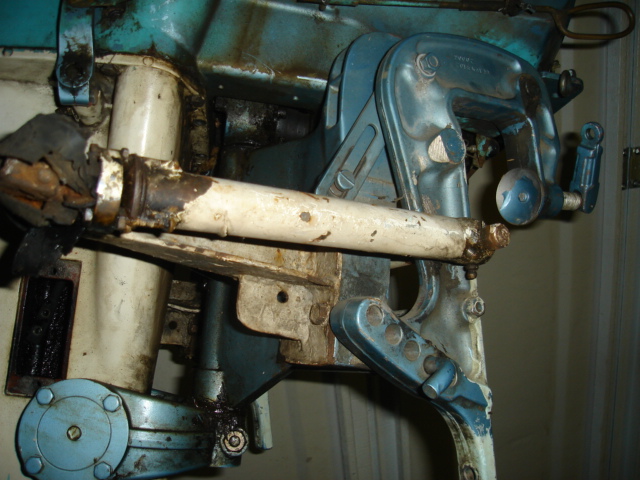

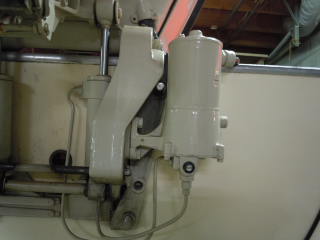

This tilt unit is interesting, I once saw one of those arms in a photo but it was laying in a box and I had no idea what it was for.
Would be fun to see the pump arrangement and the starboard side of the motor. Is there a second ram on the stbd side Tom?
The Homelite mysteries keep coming!

Attachments:

Please Log in or Create an account to join the conversation.

BillR
FG member/advertiser since 1998
www.bearcat55.com
www.homelite55.com
www.robertsmaritimesystems.com

Re:Homelite power tilt, shade tree special 13 years 2 months ago #24188

4stroke Offline Expert Boarder Posts: 291 Karma: 16 Thank you received: 1	Then there's the do it yourself unit! Only one hose to these homemade rams, I put air to the one that is still attached and it does seem to work. Attachments: Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation. Dick Johnson 1989 16ft Sylvan '57 Evinrude 18 (finally found a decent one) '58 Johnson 5.5 '72 Johnson 6.0 '61 Homelite '64 Johnson 18 '65 Homelite 55 '66 Homelite 55 '68 Bearcat 55 (3) '70 Bearcat 55 (2) '71 Bearcat 85 (Sold)

Re:Homelite power tilt, shade tree special 13 years 2 months ago #24192

billr Offline Moderator Posts: 621 Karma: 51 Thank you received: 0	Too funny Dick, there are 4 versions of power tilt and or trim on here now. I'll add the fifth and show my Panther bracket in action later tonight. Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation. BillR FG member/advertiser since 1998 www.bearcat55.com www.homelite55.com www.robertsmaritimesystems.com

Re:Homelite power tilt, shade tree special 13 years 2 months ago #24229

4stroke
Offline
Expert Boarder
Posts: 291
Karma: 16
Thank you received: 1

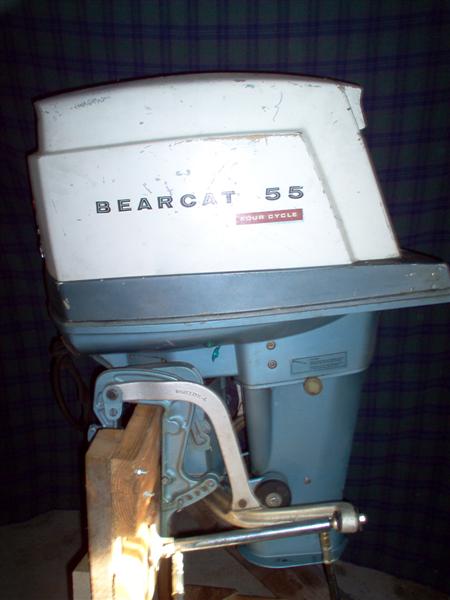

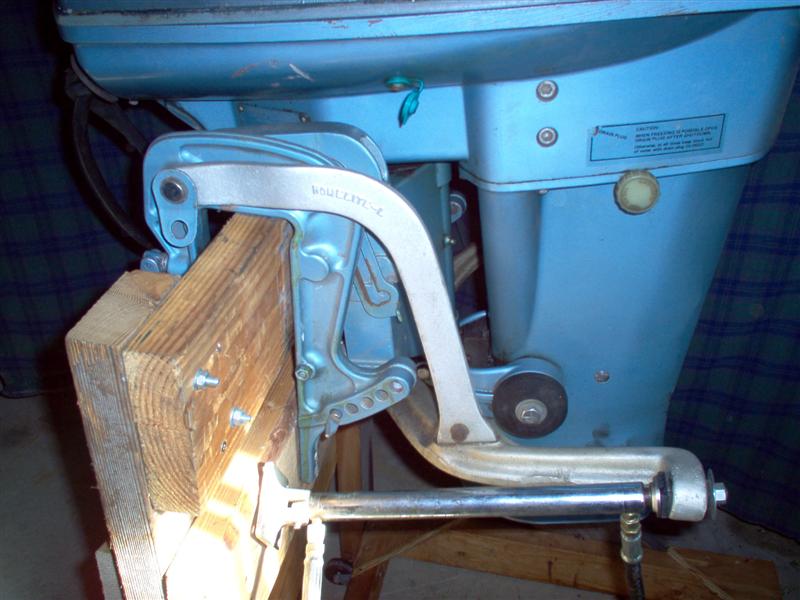

Someone went to a lot of work to do that! At the fwd end, the ends are beveled for clearance of the transom bracket when it is raised and if you look closely there are zerks for greasing that end. It's the aft end where they lost it............must have ran over budget and hired the low bidder to finish it!!!

With a little re-engineering this could be made to work......maybe next winters project.

Please Log in or Create an account to join the conversation.

Dick Johnson

1989 16ft Sylvan

'57 Evinrude 18 (finally found a decent one)
'58 Johnson 5.5
'72 Johnson 6.0
'61 Homelite
'64 Johnson 18
'65 Homelite 55
'66 Homelite 55
'68 Bearcat 55 (3)
'70 Bearcat 55 (2)
'71 Bearcat 85 (Sold)

Re:Homelite power tilt 13 years 2 months ago #24233

Tom from Rubicon Offline Fresh Boarder Posts: 30 Karma: 1 Thank you received: 1	Thanks for posting the pics Bill. The tilt casting is symmetrical so starboard side is the mirror of port side. Both sides have hyd. cylinders for a balanced lift. I'll go out in the blizzard today and take more photographs of the pump and anything else that looks interesting. Tom Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation.

Re:Homelite power tilt 13 years 2 months ago #24268

Zwarbyt Offline Junior Boarder Posts: 65 Thank you received: 0	Very pretty boat love the look Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation.

Re:Homelite power tilt 13 years 2 months ago #24317

Jim L Offline Platinum Boarder Posts: 1426 Karma: 60 Thank you received: 2	............................ Attachments: Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation.

Re:Homelite power tilt, shade tree special 13 years 1 month ago #25532

plush1959
Offline
Fresh Boarder
Posts: 7
Karma: 30
Thank you received: 0

4stroke wrote:

Then there's the do it yourself unit!

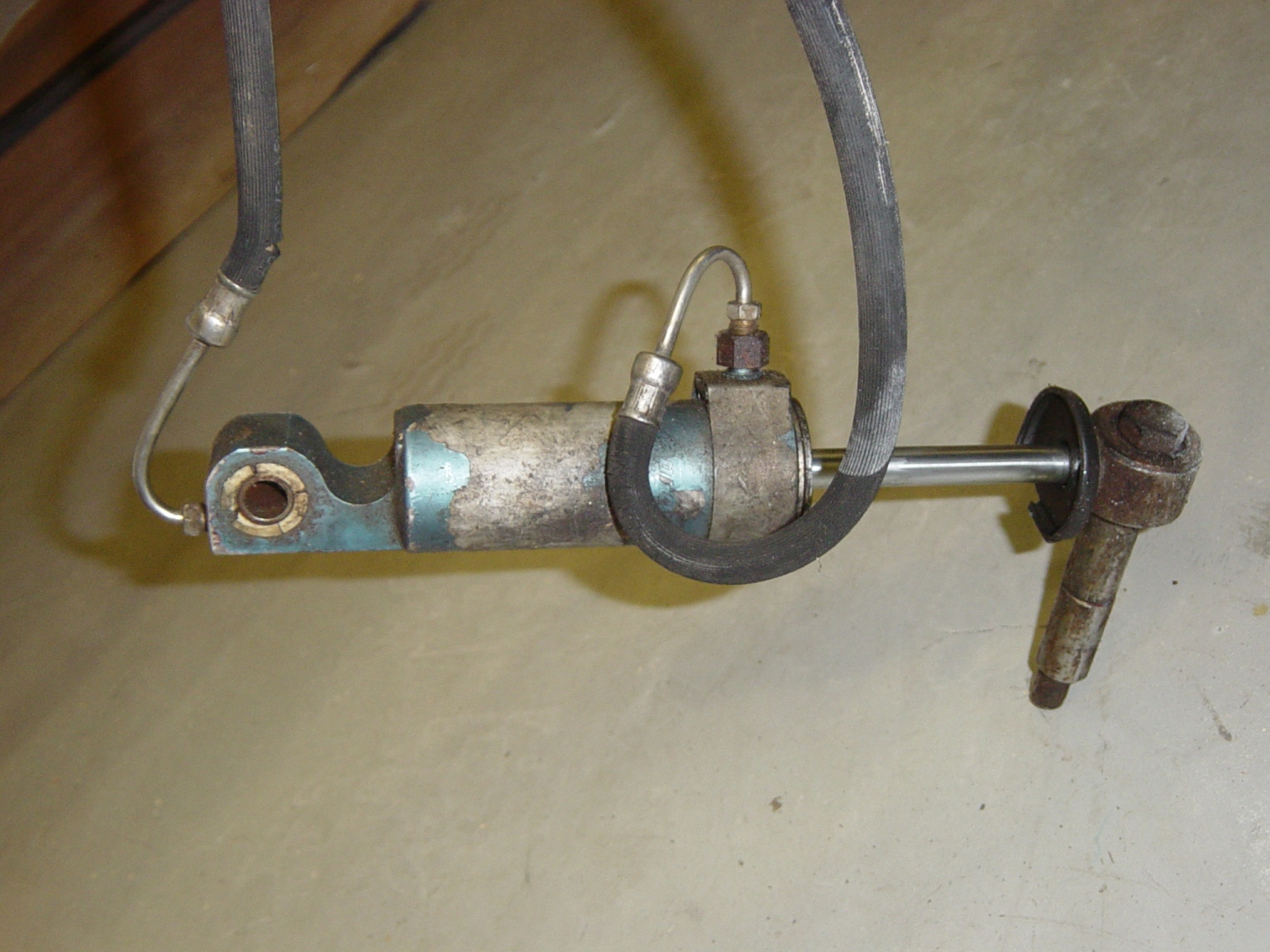

Only one hose to these homemade rams, I put air to the one that is still attached and it does seem to work.

You didn't tell me you tried it and it worked.
Some of that innovative fabrication

The older I get, the harder it is to tilt that sucker up.

Not sure if my 17 Uniflite will carry two of these engines or not but worth a look to see. I got enough to put one more together.
I think I sent pictures of it.
Its a Black Cat

Please Log in or Create an account to join the conversation.

Re:Homelite power tilt, shade tree special 13 years 1 month ago #25534

4stroke
Offline
Expert Boarder
Posts: 291
Karma: 16
Thank you received: 1

plush1959 wrote:

You didn't tell me you tried it and it worked.
Some of that innovative fabrication

The older I get, the harder it is to tilt that sucker up.

Not sure if my 17 Uniflite will carry two of these engines or not but worth a look to see. I got enough to put one more together.
I think I sent pictures of it.
Its a Black Cat

[/quote]

Never tried it till this thread got started so I was out there one day and thought I'd see what ti did with some air. It's crudely built but could be cleaned up and might actually be made to work. Too many others to work on so it's a ways off.

I still have your motor mounts for the Black Cat

Please Log in or Create an account to join the conversation.

Dick Johnson

1989 16ft Sylvan

'57 Evinrude 18 (finally found a decent one)
'58 Johnson 5.5
'72 Johnson 6.0
'61 Homelite
'64 Johnson 18
'65 Homelite 55
'66 Homelite 55
'68 Bearcat 55 (3)
'70 Bearcat 55 (2)
'71 Bearcat 85 (Sold)

Re:Homelite power tilt, shade tree special 13 years 1 month ago #27146

billr Offline Moderator Posts: 621 Karma: 51 Thank you received: 0	I shipped our own Dr. Anderson my Bearcat power tilt unit today. So knowing him it won't be long before we see it looking like new! (I've never seen it work so sent it no charge pending it actually works) Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation. BillR FG member/advertiser since 1998 www.bearcat55.com www.homelite55.com www.robertsmaritimesystems.com

Re:Homelite power tilt 13 years 1 month ago #27330

gdanderson
Offline
Contributing Member
Posts: 155
Karma: 33
Thank you received: 0

Bill: The Power tilt unit showed up yesterday. Today (3-11-11) I put some power to it and by gosh it works. Found the installation instructions you sent with it and come to find out I have installation instruction with photos in my collection of manuals. Will get new hoses made for it. Need to figure what color to paint it to mach the next boat.

Thanks A Million!

Greg

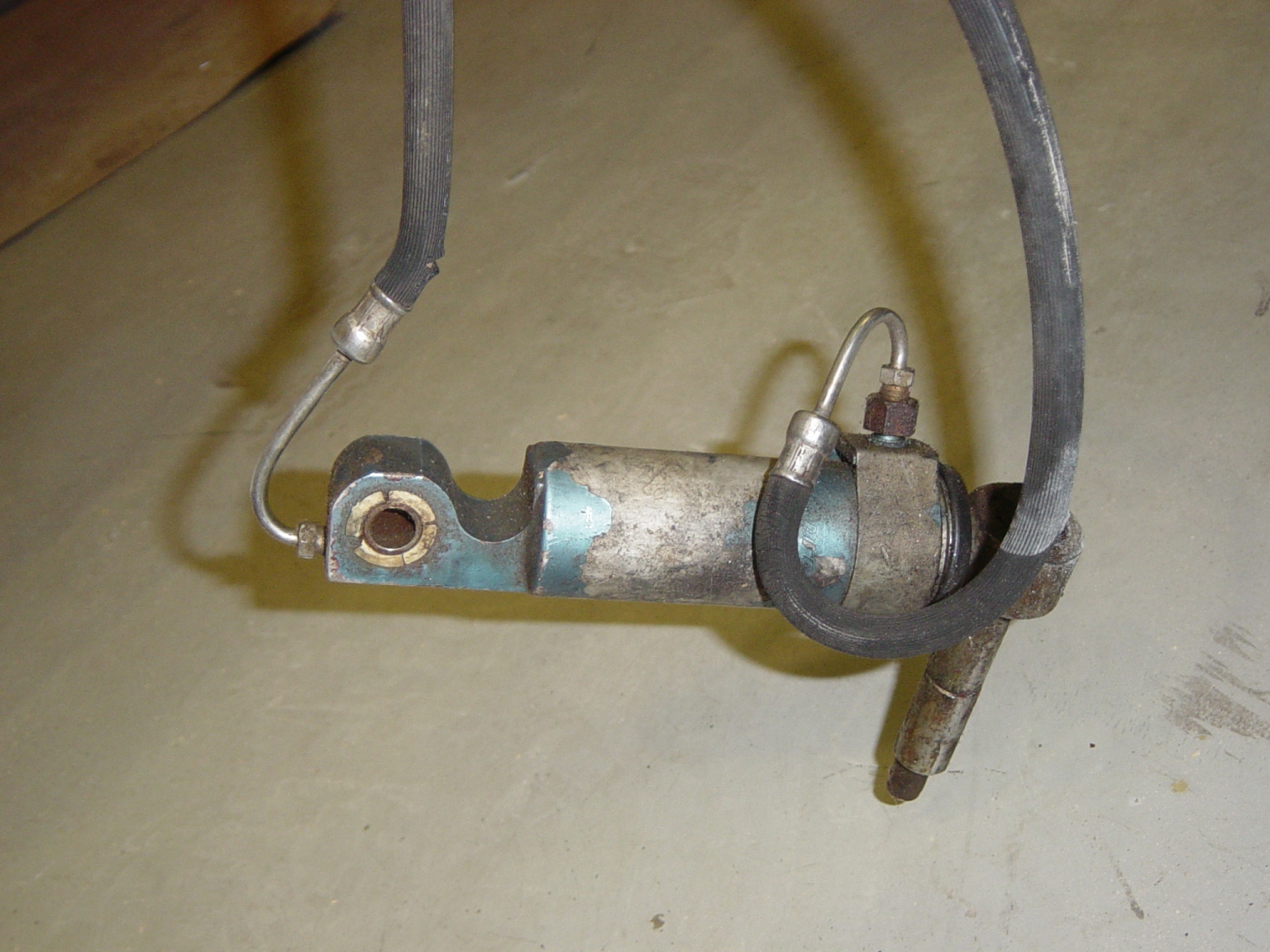

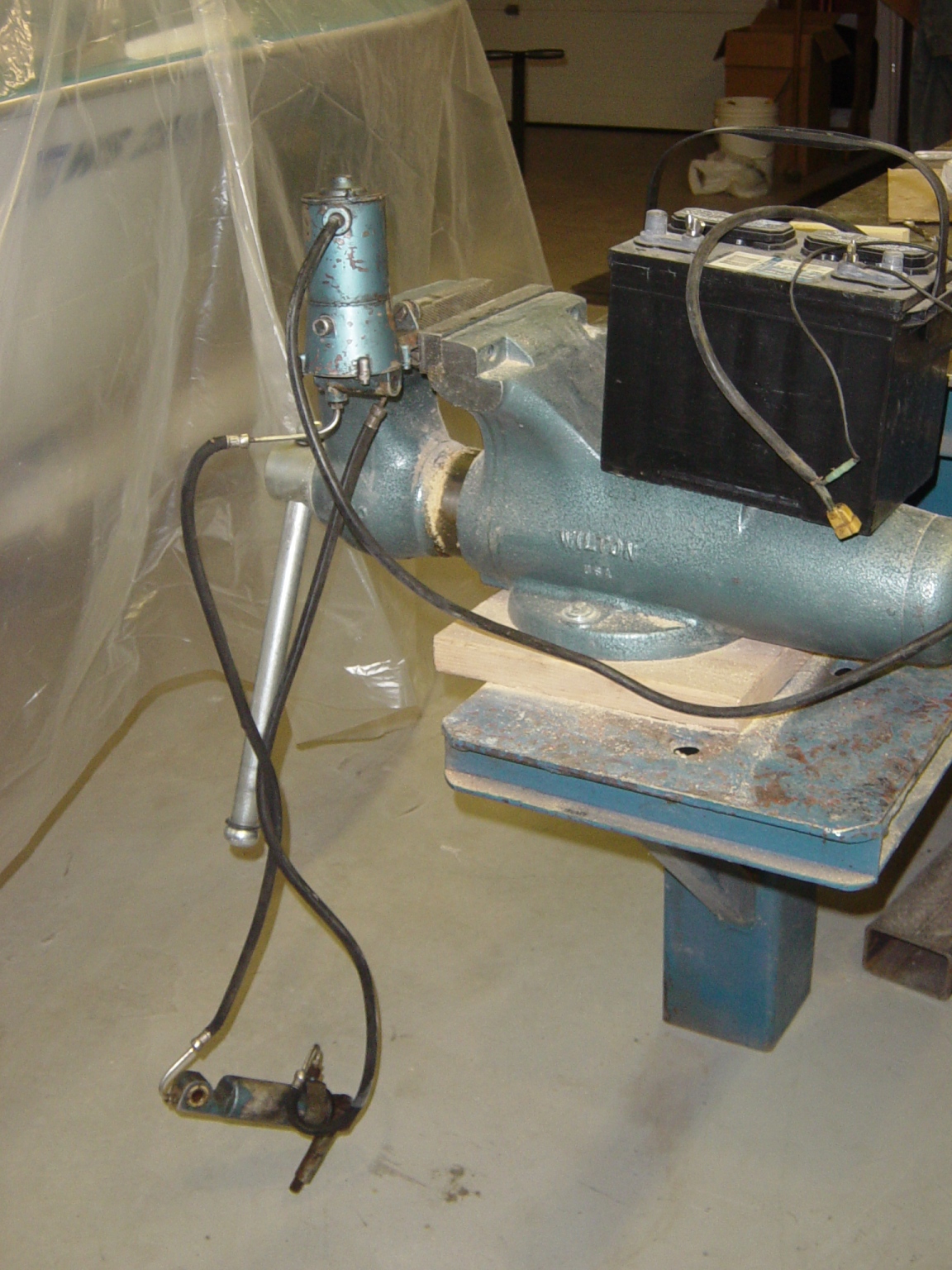

Temporary setup in vice for testing.

Ram in the in position

Ram in the out position

Attachments:

Please Log in or Create an account to join the conversation.

Re:Homelite power tilt 13 years 1 month ago #27427

Tom from Rubicon Offline Fresh Boarder Posts: 30 Karma: 1 Thank you received: 1	Looking at the photos Greg posted it doesn't look like it would be too hard to machine up the hydraulic cylinder. I used to machine prototype cylinders for the Volvo Penta outdrives. Tom from Rubicon, WI Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation.

Re:Homelite power tilt 12 years 5 months ago #48408

billr Offline Moderator Posts: 621 Karma: 51 Thank you received: 0	Greg, good chat we had the other day. Did you ever try out the power tilt? I forgot that we had talked about that so long ago, geez this thread is from 7 months ago. Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation. BillR FG member/advertiser since 1998 www.bearcat55.com www.homelite55.com www.robertsmaritimesystems.com

Re:Homelite power tilt 12 years 5 months ago #48420

gdanderson
Offline
Contributing Member
Posts: 155
Karma: 33
Thank you received: 0

Bill:

Thanks for the call. Always fun talking to another Homeliter... As far as the power tilt after having confirmed it worked I packed it away for that special application. I am building up a Lake N Sea for my daughter for use on Lake Superior. It might end up on that boat so she can beach the boat easily.

Greg

Please Log in or Create an account to join the conversation.

Re:Homelite power tilt 12 years 5 months ago #48450

billr Offline Moderator Posts: 621 Karma: 51 Thank you received: 0	Good plan. Is the Lake N Sea a short shaft boat or a long shaft boat. Don't see many of those out here. Same for MFG. Lots of Skagits though! Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation. BillR FG member/advertiser since 1998 www.bearcat55.com www.homelite55.com www.robertsmaritimesystems.com

Re:Homelite power tilt 12 years 5 months ago #48456

4stroke Offline Expert Boarder Posts: 291 Karma: 16 Thank you received: 1	I bought a Chrysler unit and the Cylinder looks the same.......interesting, pump looks similar too. Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation. Dick Johnson 1989 16ft Sylvan '57 Evinrude 18 (finally found a decent one) '58 Johnson 5.5 '72 Johnson 6.0 '61 Homelite '64 Johnson 18 '65 Homelite 55 '66 Homelite 55 '68 Bearcat 55 (3) '70 Bearcat 55 (2) '71 Bearcat 85 (Sold)

Re:Homelite power tilt 12 years 5 months ago #48469

gdanderson
Offline
Contributing Member
Posts: 155
Karma: 33
Thank you received: 0

Lake N Sea is a short shaft..unfortunately. All the boats I seem to be attracted to are short shaft boats. So far I have built up five short shafts Homelites. I have gotten five short shaft setups through you. Bought a short shaft motor and traded a short shaft for a long shaft. I have two short shaft setups left to be installed. That gives me seven short shaft Homelite motors total. The master plan is to build up a boat with a Homelite motor and sell it, moving on to the next boat. Well...the building up the boat part of the plan has been working. The selling part of the plan has not been going to well. When setting the price for my boats my goal is to recover the initial cost plus materials. I have included NO labor, and I still can't sell them. Maybe next year! Right now my main problem is storage. I hate to pay money to store boats that I can't sell. My main problem might be storage but my real problem is explaining this concept to my wife.

Greg

Please Log in or Create an account to join the conversation.

Re:Homelite power tilt 12 years 5 months ago #48484

billr
Offline
Moderator
Posts: 621
Karma: 51
Thank you received: 0

Greg,
re the Chrysler tilt, I had a call the other day from a guy that said they installed a Chrysler Tilt unit on a Homelite. But, when you match up the Chrysler bracket assy to the Homelite side by side, notice the Homelite clamp spacing. The 55 will sit above the Chrysler assy if it just slides onto the pivot pin as is (he said it did). He also said it raised the engine "around 3inches". They had problems with ventilating prop on turns, then they overheated the engine several times at speed from having the water inlet above the water at speed. They did not want to cut the splashwell down but will have to, according to him.
I'll try to get pics, but you can see in Tom's post how high the engine is. Not saying you can't make it work, just saying something from the field crossed my desk that you may want to consider.

Please Log in or Create an account to join the conversation.

BillR
FG member/advertiser since 1998
www.bearcat55.com
www.homelite55.com
www.robertsmaritimesystems.com

Re:Homelite power tilt 12 years 5 months ago #48506

4stroke
Offline
Expert Boarder
Posts: 291
Karma: 16
Thank you received: 1

Couple of things about the Chrysler unit, the swivel pin is larger so you would need to rebush the swivel bracket. The swivel bracket is longer by 5/8". If you look closely at Tom's picture it appears the bottom leg mount is notched to make up this difference. As far as it being higher, I haven't got that far yet. If nothing else for the $ invested into this (experiment) conversion, the tilt cylinder looks the same as Greg's unit and if it's the same length could be used in that application. How does the cylinder at the bottom attach to the Bearcat bracket?

Please Log in or Create an account to join the conversation.

Dick Johnson

1989 16ft Sylvan

'57 Evinrude 18 (finally found a decent one)
'58 Johnson 5.5
'72 Johnson 6.0
'61 Homelite
'64 Johnson 18
'65 Homelite 55
'66 Homelite 55
'68 Bearcat 55 (3)
'70 Bearcat 55 (2)
'71 Bearcat 85 (Sold)

Re:Homelite power tilt 12 years 5 months ago #48514

gdanderson Offline Contributing Member Posts: 155 Karma: 33 Thank you received: 0	Photo's of factory Homelite tilt brackets. Side view of transom tilt cylinder bracket. View of back of transom tilt cylinder bracket Pivot bracket - bracket Pivot bracket - bracket Pivot bracket - applied pivot bracket looking up Attachments: Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation.

Re:Homelite power tilt 12 years 5 months ago #48518

4stroke
Offline
Expert Boarder
Posts: 291
Karma: 16
Thank you received: 1

Thanks Greg for the pictures, I kind of thought that was how it attached and thought that's what the two drilled and tapped holes were for in the vertical swivel bracket on the late engines. Looks like you'd need to drill and tap the overhead holes. All of the brackets seem simple enough to make. If you get a chance at some point could you get a measurement of the cylinder from eye to eye open and fully retracted?

Please Log in or Create an account to join the conversation.

Dick Johnson

1989 16ft Sylvan

'57 Evinrude 18 (finally found a decent one)
'58 Johnson 5.5
'72 Johnson 6.0
'61 Homelite
'64 Johnson 18
'65 Homelite 55
'66 Homelite 55
'68 Bearcat 55 (3)
'70 Bearcat 55 (2)
'71 Bearcat 85 (Sold)

Re:Homelite power tilt 12 years 5 months ago #48560

billr Offline Moderator Posts: 621 Karma: 51 Thank you received: 0	Cool project. Is the Chrysler unit power tilt or power tilt/trim? Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
	Please Log in or Create an account to join the conversation. BillR FG member/advertiser since 1998 www.bearcat55.com www.homelite55.com www.robertsmaritimesystems.com

TOPIC: Homelite power tilt
